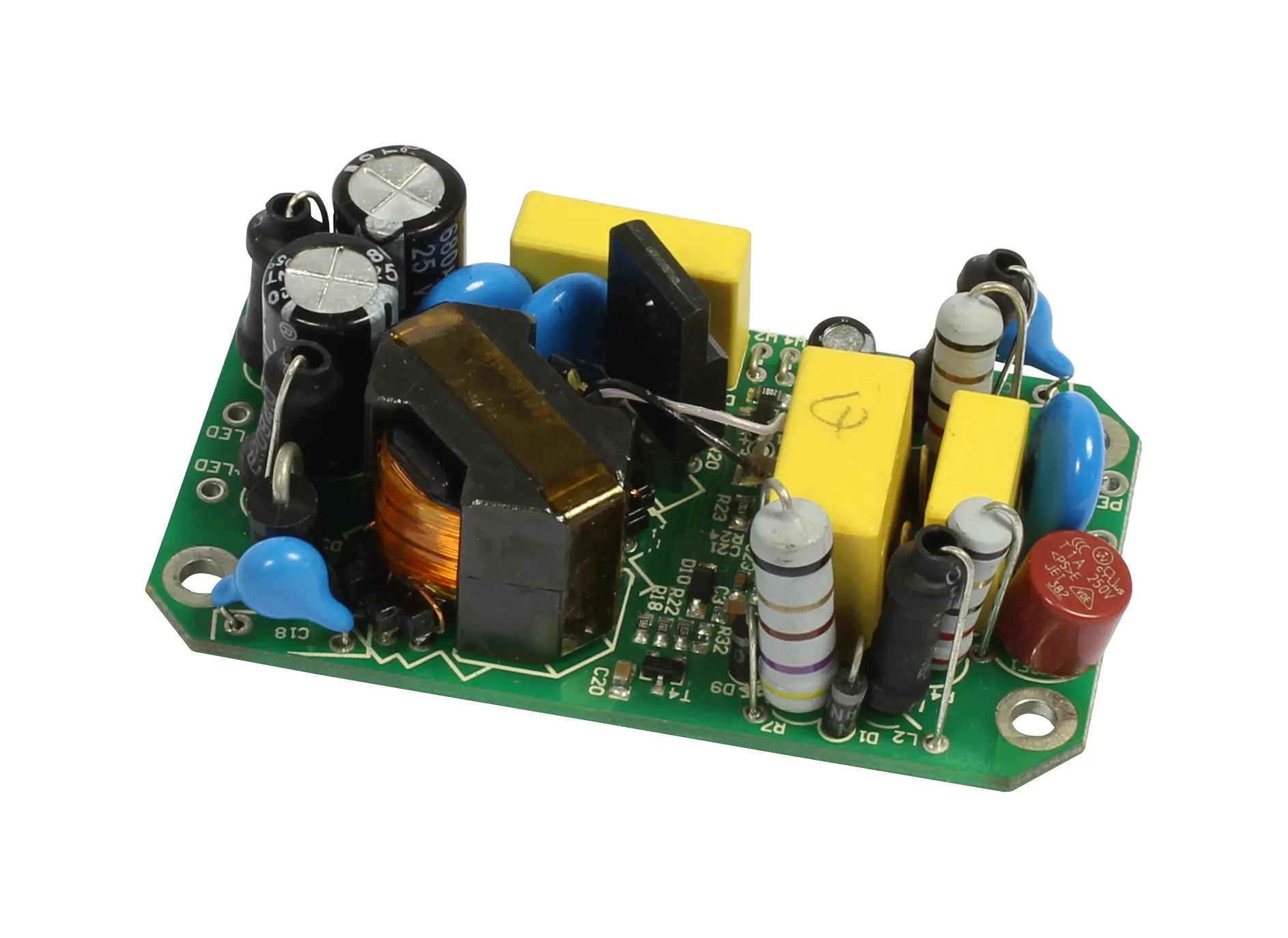

Synergy 21 Netzteil – CC Driver ALL1082 7-21W

Beschreibung

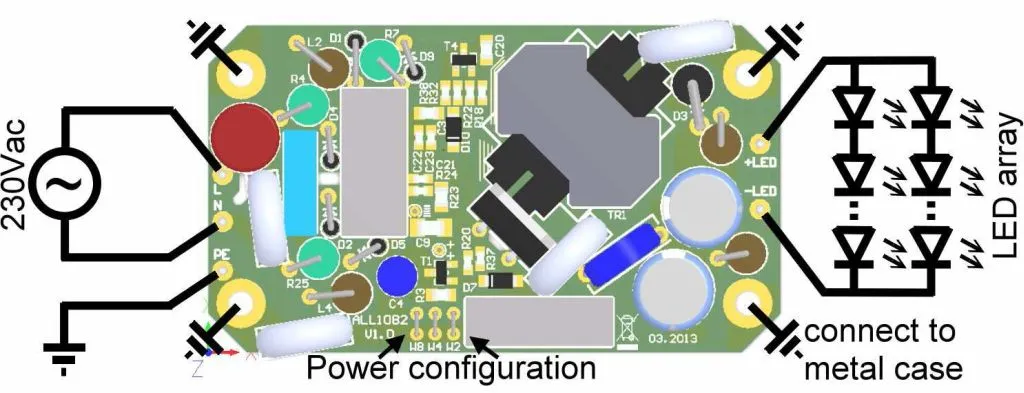

Das Netzteil ALL1082 ist ein primär dimmbares, leistungsgeregeltes Netzteil Anwendungsbereich: 7-21W für z.B. 10W, 20W Baustrahler – Input voltage (normal mode): 207 to 253Vac (47 to 63Hz) – Accepted input voltage: 180 to 270Vac (current maybe vary, refer to diagrams) – Primary dimmable via phase-cut dimmers (leading/trailing edge dimmers) – Inrush current: &lt300mA – Output power range: 6.4 to 20W (±10%) – Constant power behaviour (CP) – Output voltage range: 8 to 20V (refer to diagrams) – Output OVP shutdown: 21 to 26V – Startup time: typical 250ms – Ramp-up time to full light: typical 500ms – Emergency light function: Input &gt30Vdc, &gt24Vac (at 10% nominal power) – Temperature range: -25 to 65°C – Overall efficiency: 78 to 86% – High power factor: 82 to 98% (refer to diagrams) – Temperature derating: Power reducing at 60°C PCB temperature – Thermal shutdown: at 80°C PCB temperature to &lt20% of nominal power – Outputs connectable in series/parallel to reach higher power/voltage
