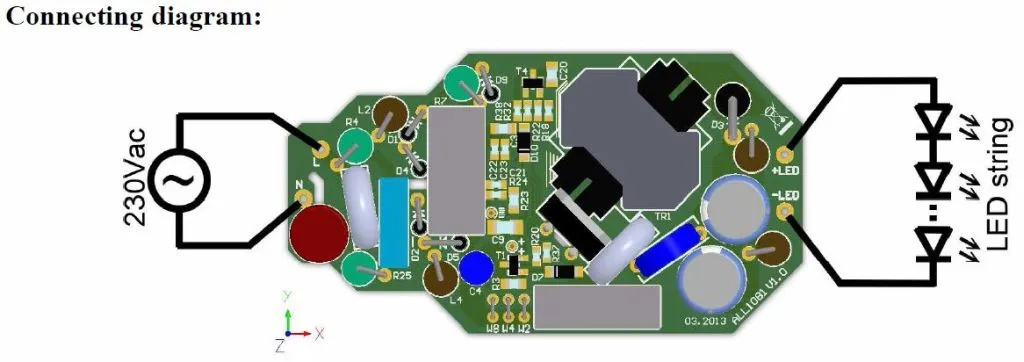

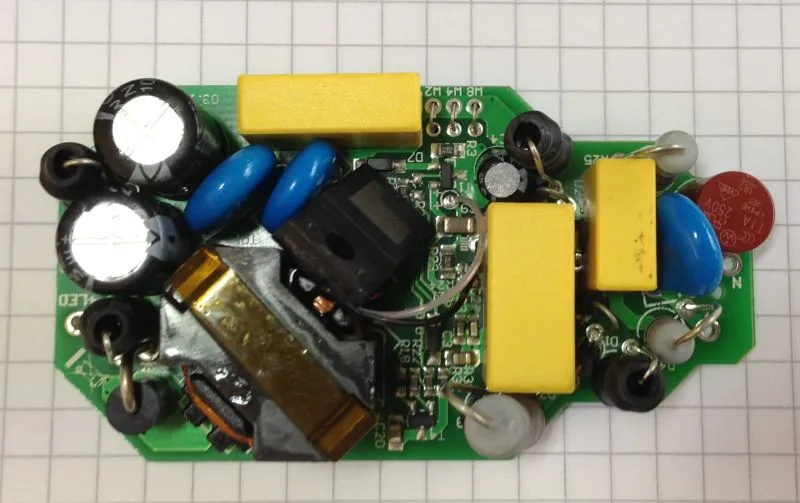

Synergy 21 Netzteil – CC Driver ALL1081 8-16W

Beschreibung

Das Netzteil ALL1081 ist ein primär dimmbares,
leistungsgeregeltes Netzteil

Anwendungsbereich: 8-16W für z.B. PAR38, Point, S21dual etc.

– Input voltage (normal mode): 207 to 253Vac (47 to 63Hz)
– Accepted input voltage: 180…270Vac (current maybe vary, refer to diagrams)
– Primary dimmable via phase-cut dimmers (leading/trailing edge dimmers) – Inrush current: &lt300mA – Output current: typical 275mA (±10%)
– Constant power behaviour (CC)
– Output voltage range: 28 to 58V
– Output OVP shutdown: at typical 60V
– Startup time: typical 200ms
– Ramp-up time to full light: typical 500ms
– Emergency light function: Input &gt30Vdc, &gt24Vac (at 10% nominal power) – Temperature range: -25 to 65°C – Overall efficiency: 84.5 to 88%
– High power factor: 80 to 98% (refer to diagrams)
– Temperature derating: Power reducing at 60°C PCB temperature
– Thermal shutdown: at 80°C PCB temperature to 20% of nominal power

Größe: 74*40*23mm
