Beschreibung

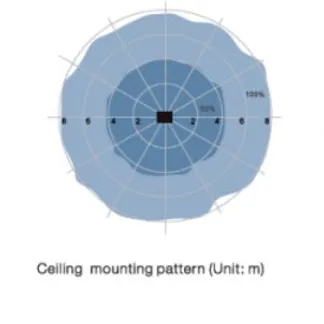

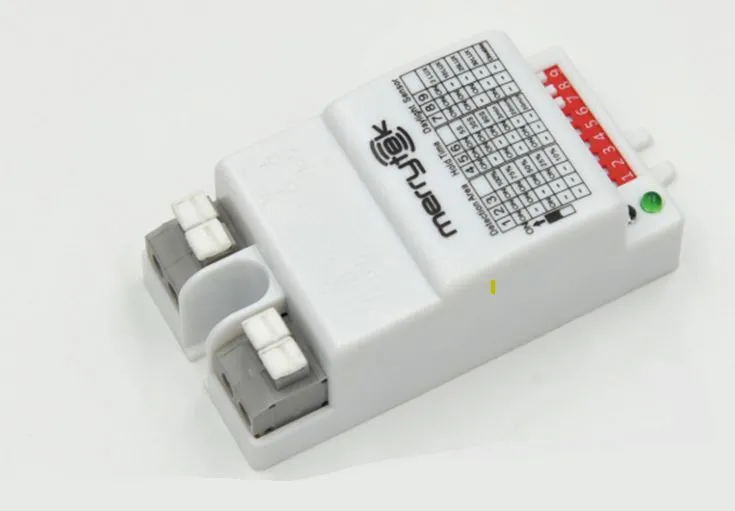

Merrytek MC030S Parameter characteristics Input Rated Voltage 220-240VAC 50/60Hz Stand-by Power =0.1W Surge Test L–N: 1kV Output Output Control ON-OFF Load Capacity 400W(Inductive/LED) 800W(Resistive) Max. Surge Capacity 30A (50% Ipeak, twidth =500us, 230Vac full load, cold start) 60A (50% Ipeak, twidth =200us, 230Vac, full load, cold start) Sensor parameters Operating Frequency 5.8 GHz ±75MHz, ISM wave band. Transmitting power 1mW Max. Detecting Radius Ceiling installation 3m height: 1m/s = 2.5m, 0.3m/s = 3.5m Test condition: Product setting 100% sensitivity, 60 ? indoor open space Mounting Height 2.5-6m (ceiling mounting), 2-3m (wall mounting) Environment Operating Temperature -25~60°C Storage Temperature -40?~80?, Humidity: =85%(Non-condensing) Maximum Shell Temperature (Tc) 80? Certification Standards Certificate CE, RED, TUV Environmental Requirement Compliant to RoHS 2.0, Reach IP Rating IP20 Product Category Class ? Other Wiring Press-in type terminal block, wiring 0.75-1.5 mm2 Installation Built-in Package Bubble bag + Clapboard + Carton(K=A) Net Weight 37.8±3g Lifetime 5 years warranty @Ta
