Beschreibung

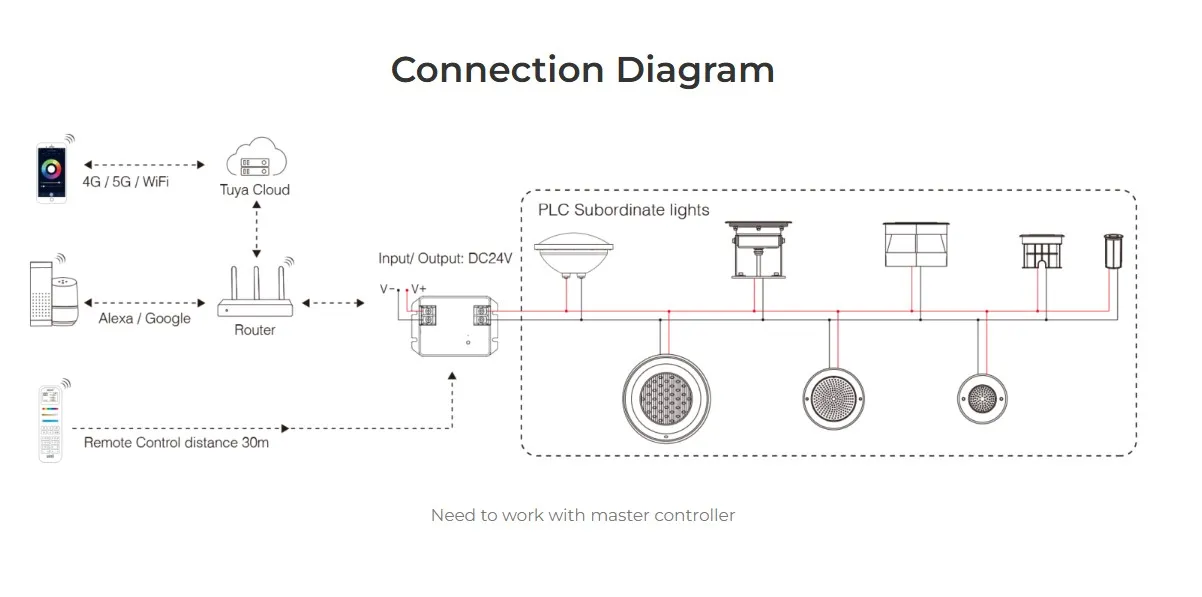

PLC-WP3 18W RGB Wall-mounted LED Pool Light (PLC) • 16 million colors for selection, dimmable for rgb& cct& brightness • Brightness and color temperature adjustable • Working with master controller to adjust rgb& cct& brightness& saturation • IP68 waterproof Features Designed by PLC control solution, simple wiring diagram. Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well. Parameters 16 million colors for selection, dimmable for rgb& cct& brightness Working with master controller to adjust rgb& cct& brightness& saturation 304 stainless steel IP68 waterproof Product Name: RGB Wall-mounted LED Pool Light Model No.: PLC-WP3 Input Voltage: DC24V Power: 18W(R: 5W, G, B: 6W, CW: 9W, W: 7W) CRI: >80 Color temperature: RGB mixed CCT Luminous Flux: 720LM Luminous efficiency: 80LM/W Beam Angle: 120° IP Rate: IP68 Working Temperature: -10~40°C WIFI Standard: IEEE 802.11b/g/n 2.4GHz EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3v 2.3.2 (2023-01) Safety Standard (LVD): EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 Radio Equipment (RED): ETSI EN 300 440 V2.2.1 Certification: CE, EMC, LVD, RED
