Beschreibung

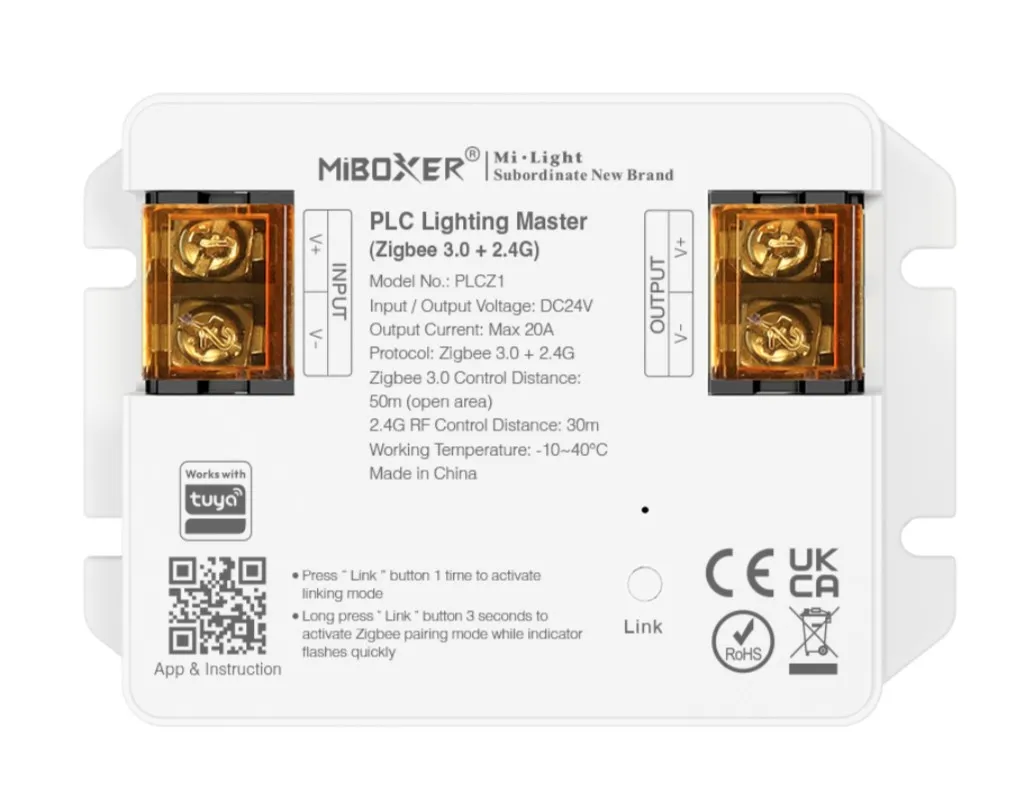

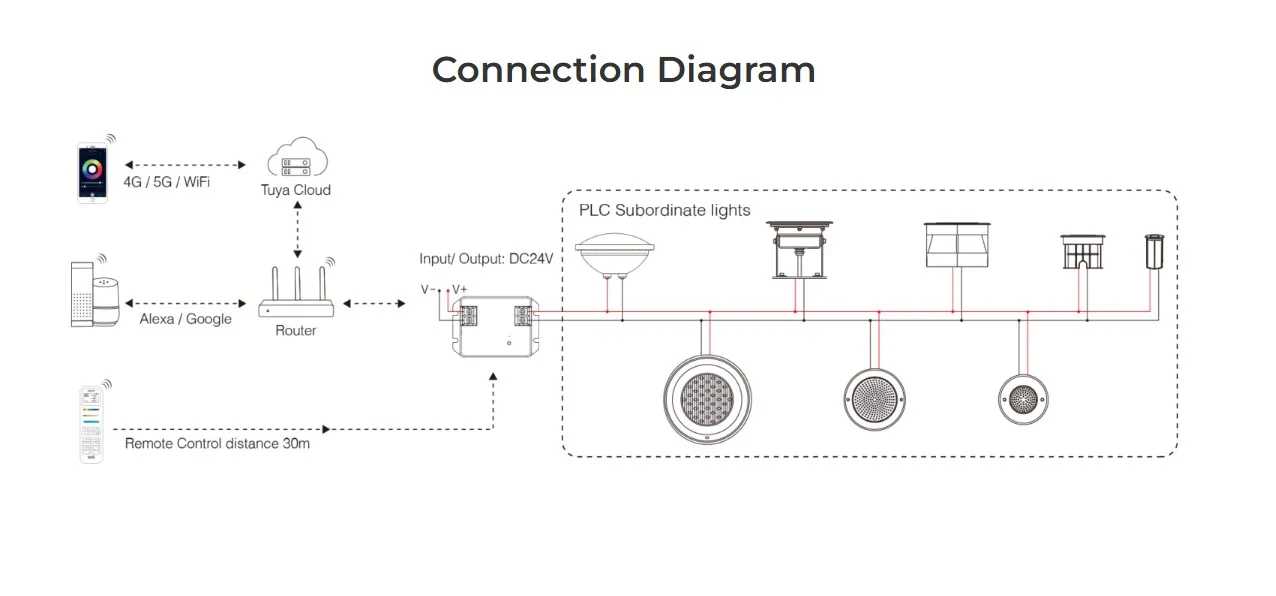

PLCZ1 PLC Lighting Master (Zigbee 3.0+2.4G) ·esigned by PLC control solution, simple wiring diagram ·TUYA SMART APP remote control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc (Zigbee 3.0 gateway is needed) Features Designed by PLC control solution, simple wiring diagram and work with Zigbee 3.0+2.4G wireless technology to achieve smart control. TUYA SMART APP remote control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well. Parameters 16 million colors for selection, dimmable for rgb &cct& brightness One controller max paired with 12pcs 2.4G RF remote ( control distance 30m) Built-in 18 dynamic mode with jumping, gradually changing ( only for 2.4G remote control) Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode is always consistent Have DND function, usually used in power failure area and save power Support TUYA SMART app control (Zigbee 3.0 gateway is needed) Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (Zigbee 3.0 gateway is needed) Product Name: PLC Lighting Master (Zigbee 3.0+2.4G) Model No.: PLCZ1 Input Voltage: DC24V Total Output: Max 20A Protocol: Zigbee 3.0+2.4GHz Control Distance: Zigbee: 50M(Opeb area)/ 2.4G RF : 30M IP Rate: IP20 Working Temperature: -10~40° WIFI Standard: IEEE 802.11b/g/n 2.4GHz EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) Safety Standard (LVD): EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 Radio Equipment (RED): ETSI EN 300 440 V2.2.1 Certification: CE, EMC, RED
