Beschreibung

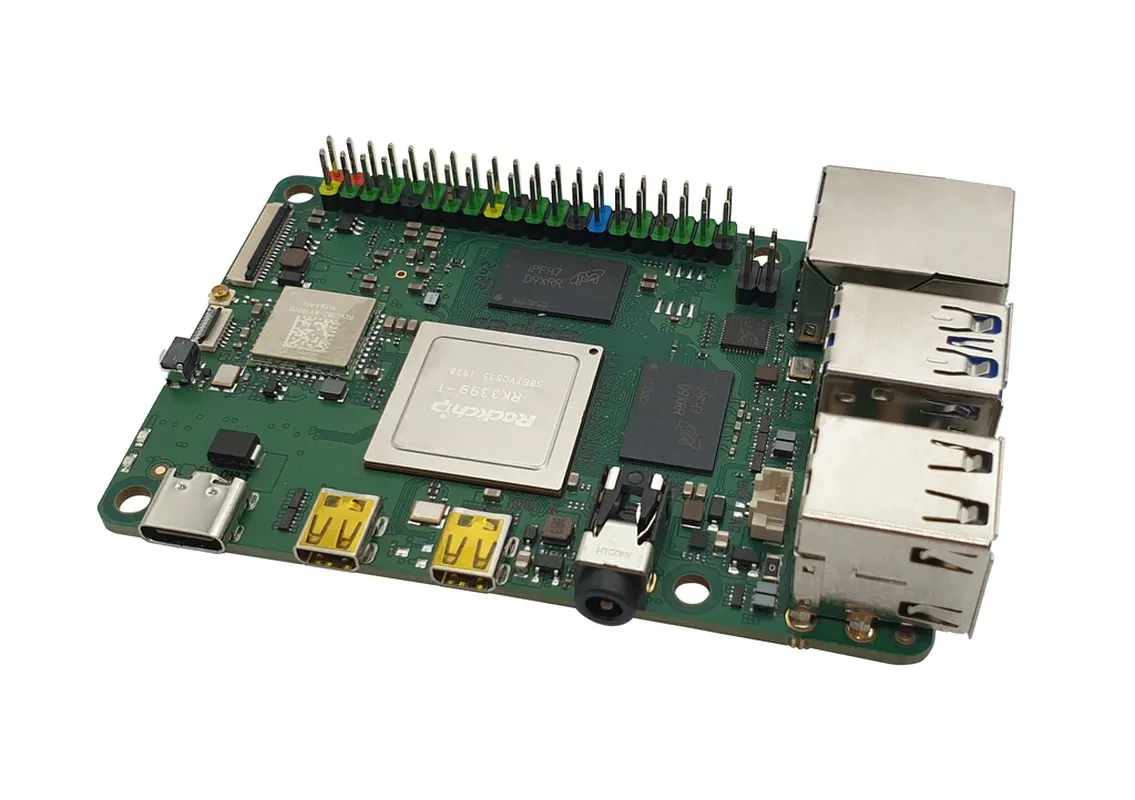

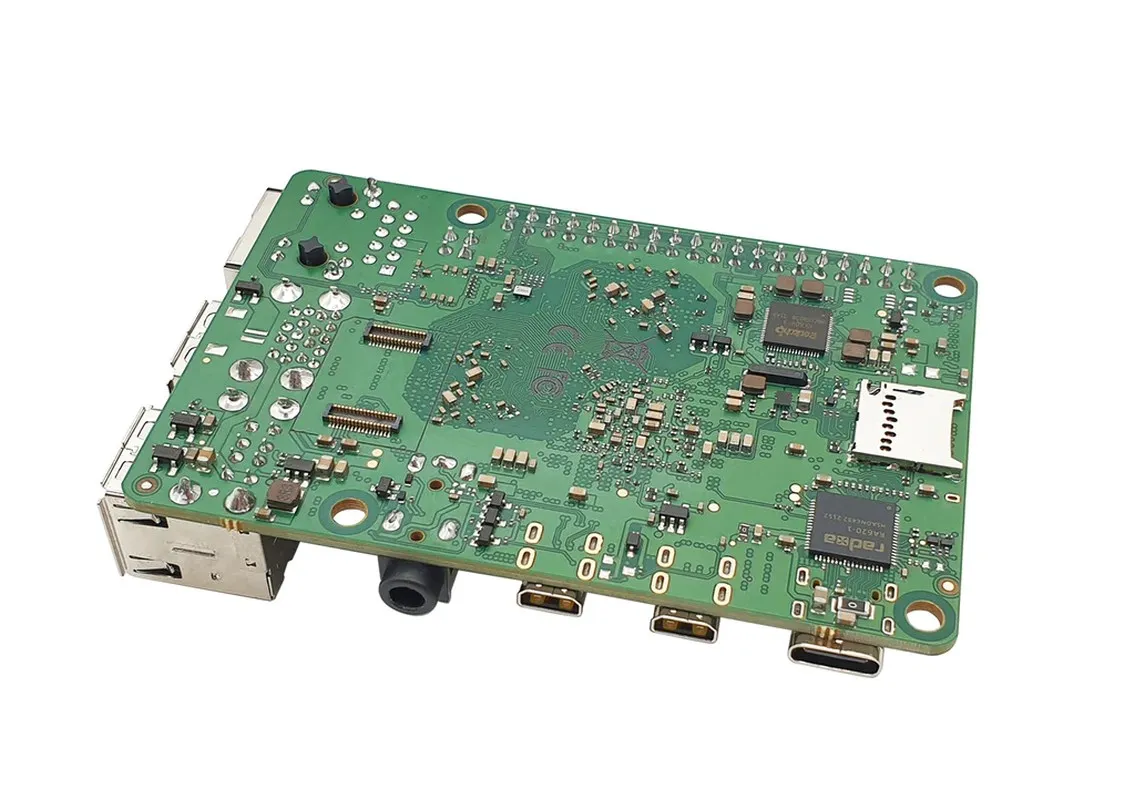

Rock Pi 4 Model C+ 4GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0), 2x Micro HDMI Details: https://wiki.radxa.com/Rock4/4cplus Rockchip RK3399T Processor 64bit hexa core processor Dual Cortex-A72, frequency 1.5GHz (oc to 2GHz) with quad Cortex-A53, 1.4Ghz (os to 1.6GHz) with separate NPU NEON coprocessor GPU Mali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11 Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 4GB Storage eMMC module Optional industrial compatible high performance eMMC module, 8G/16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD not available in latest versions. Display HDMI Micro HDMI 2.0 up to 4k@60 (Type D), H.265/VP9 (HEVC) hardware decode Micro HDMI 2.0 up to 2k@60 (Type D), H.264 hardware decode Peripherie Display MIPI DSI MIPI DSI 4 lanes display via FPC connector Two of HDMI/HDMI2/MIPI DSI can work at the same time, support mirror or extend mode. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera Audio Audio 3.5mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio Output can drive 32Ohm head phones directly USB 3.0 OTG x1 USB 3.0 HOST x1 USB 3.0 OTG port x1 (upper one) hardware switch for host/device switch, upper one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering from PoE IO 40-pin expansion header : – 1 x UART – 2 x SPI bus – 2 x I2C bus – 1 x PCM/I2S – 1 x SPDIF – 1 x PWM – 1 x ADC – 6 x GPIO – 2 x 5V DC power in – 2 x 3.3V power pin Others Power switch Dual-pin PWM fan strip (controller chip onboard) Power supply USB-C recommended 5V/5A Size 85mm x 54mm NOTE: Mechanically fits many of the existing Raspberry Pi 4 accessories. Size 85mm x 54mm
