Beschreibung

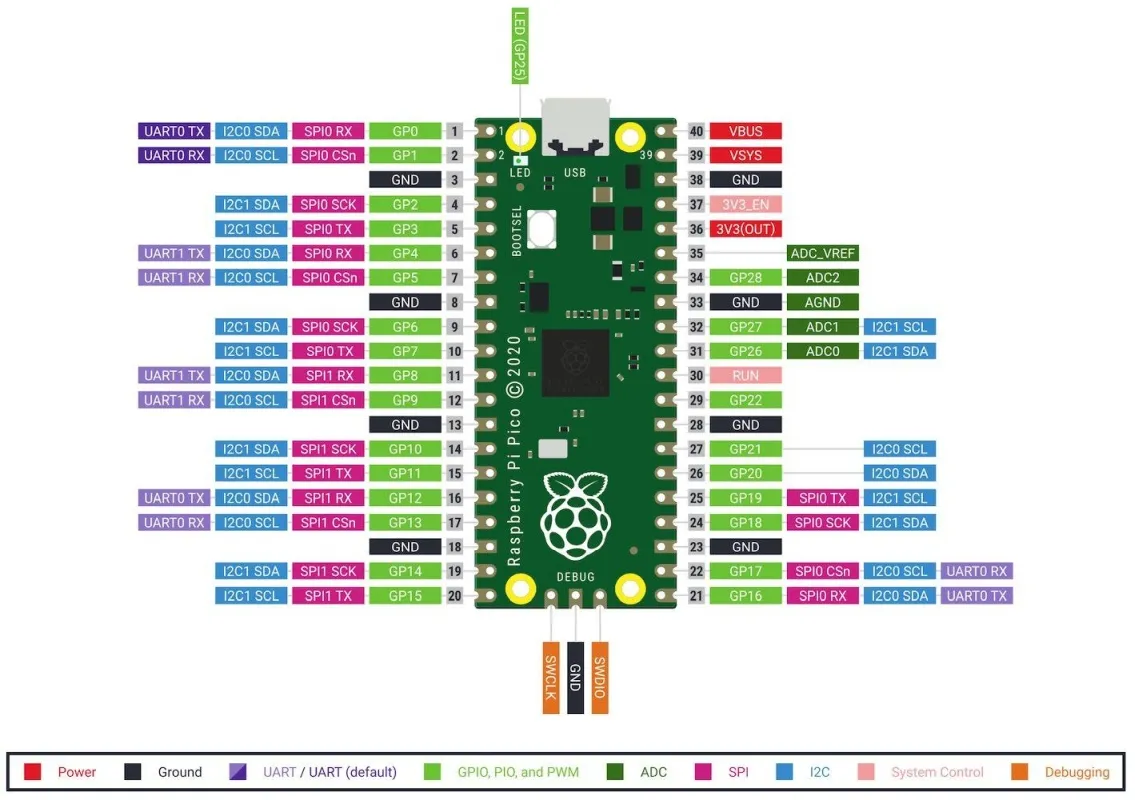

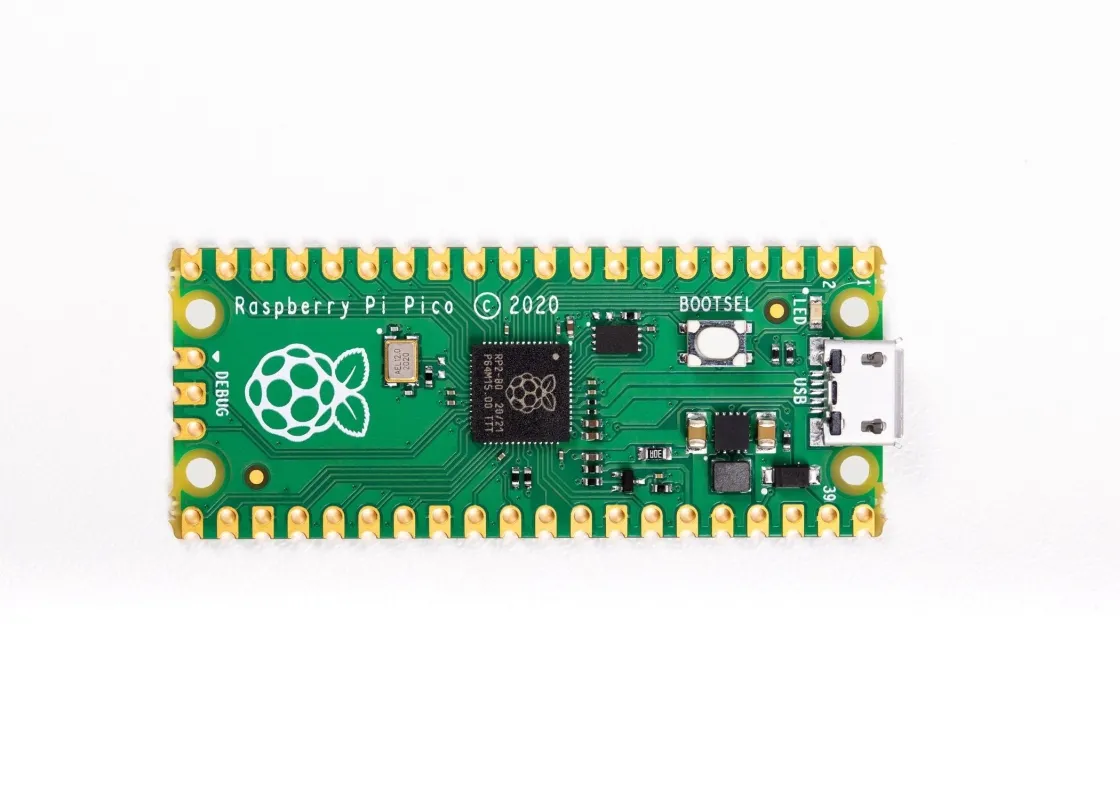

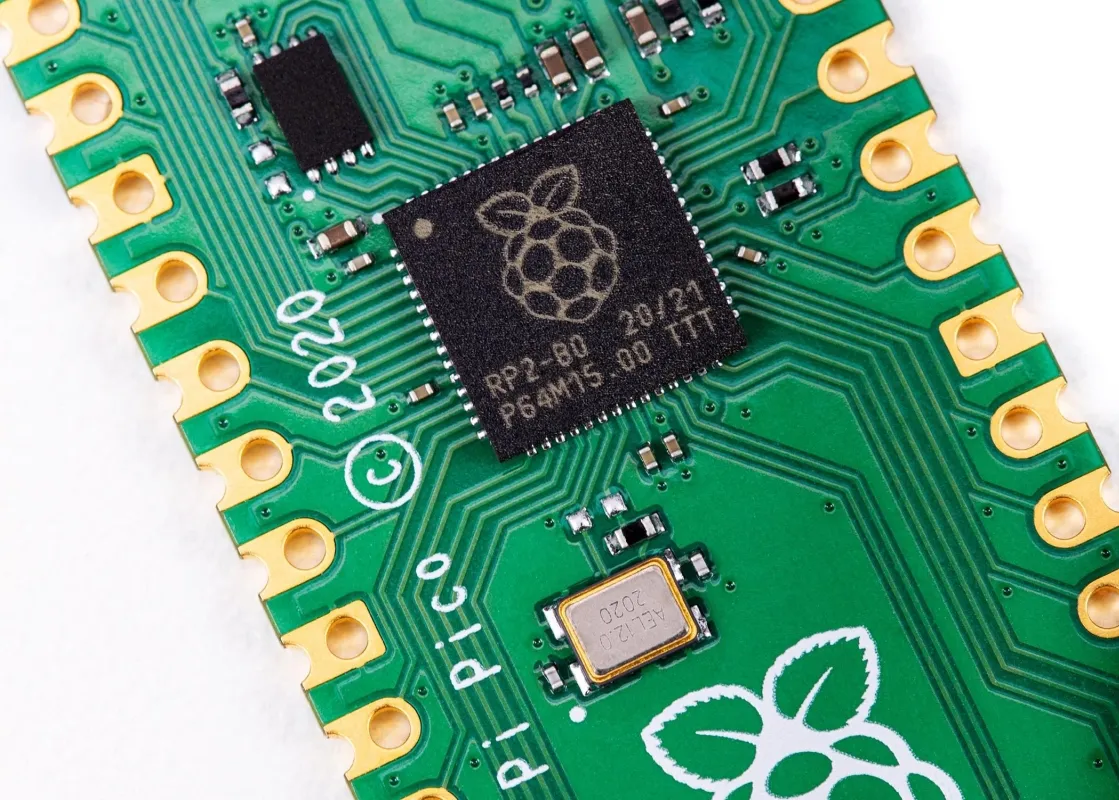

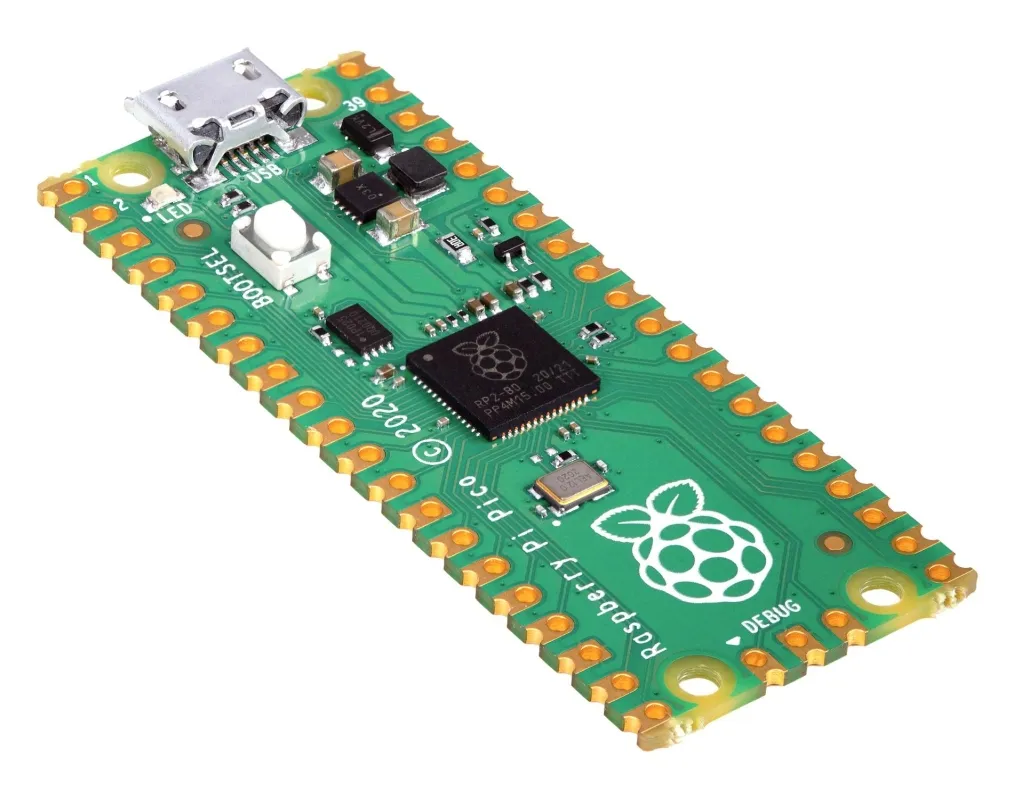

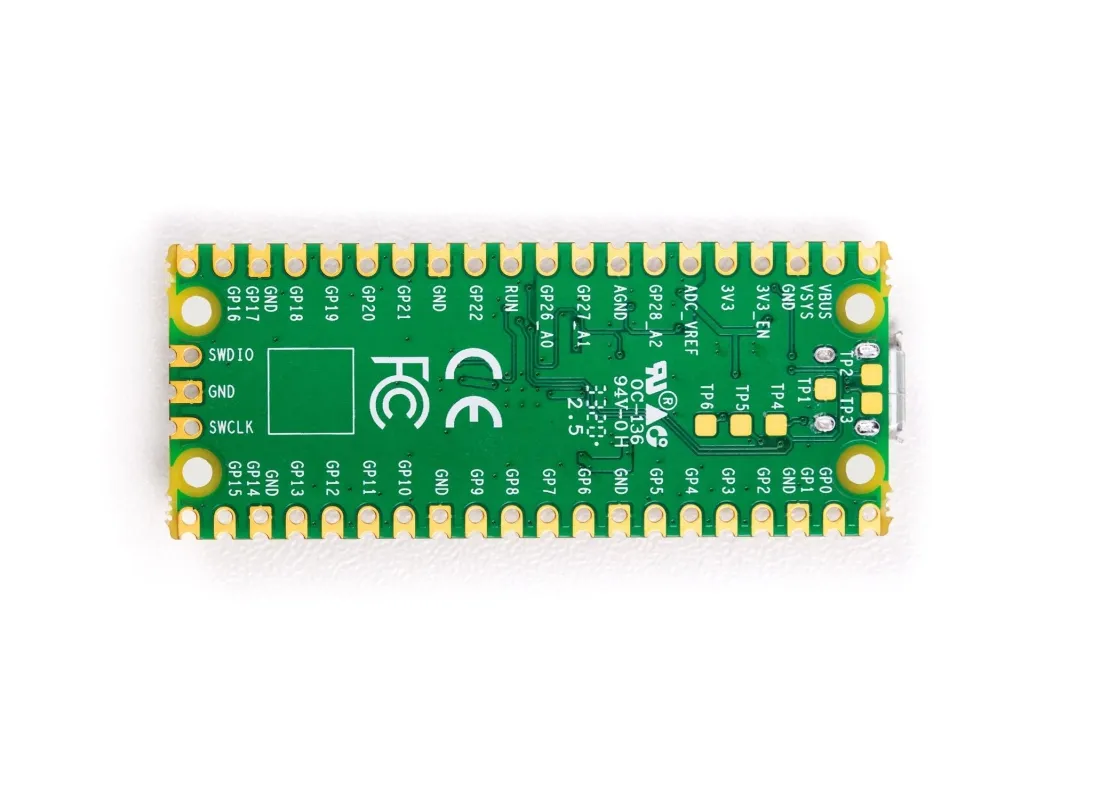

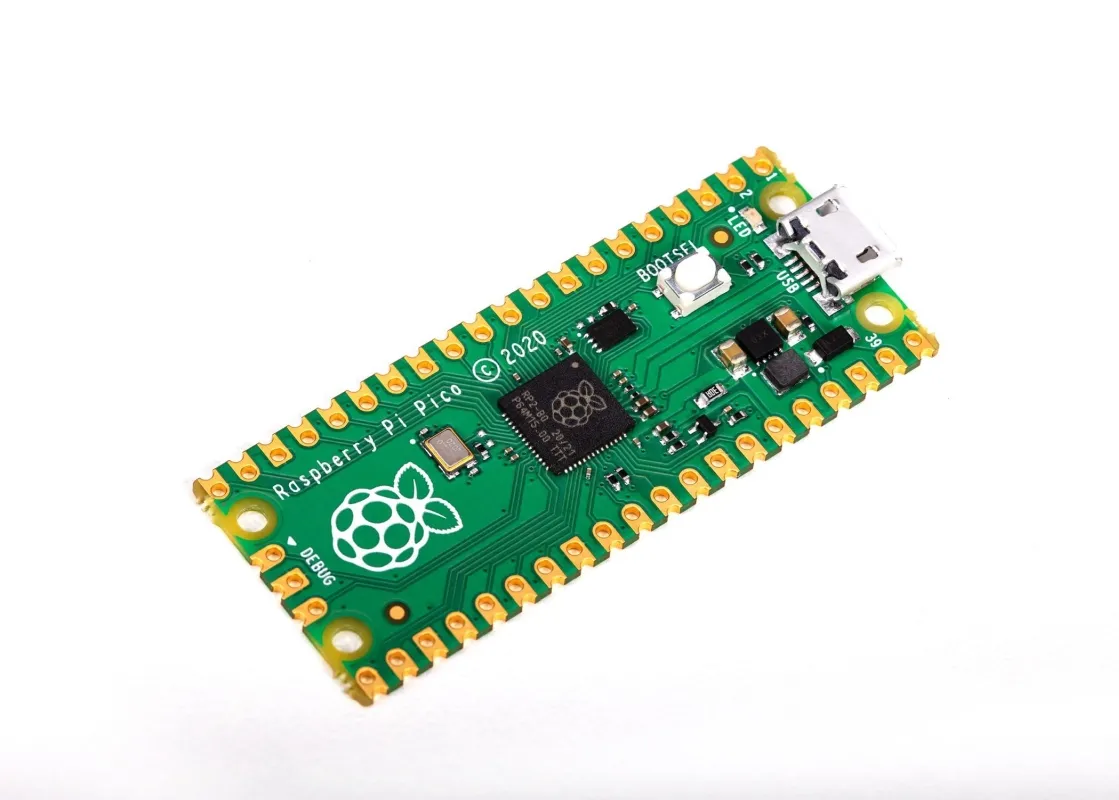

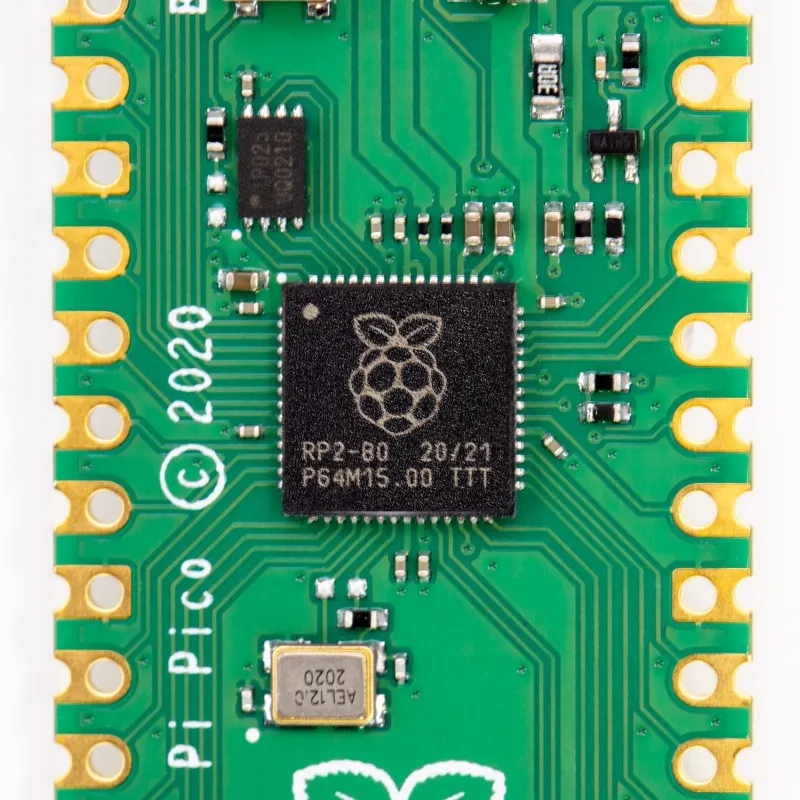

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. Key features include: RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory Castellated module allows soldering direct to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support Pinout and Design Files Download the Pinout Diagram (PDF) Design Files Download Design Files (Cadence Allegro) Download STEP File Download Fritzing Part Documentation https://www.raspberrypi.com/documentation/microcontrollers/raspberry-pi-pico.html
