Beschreibung

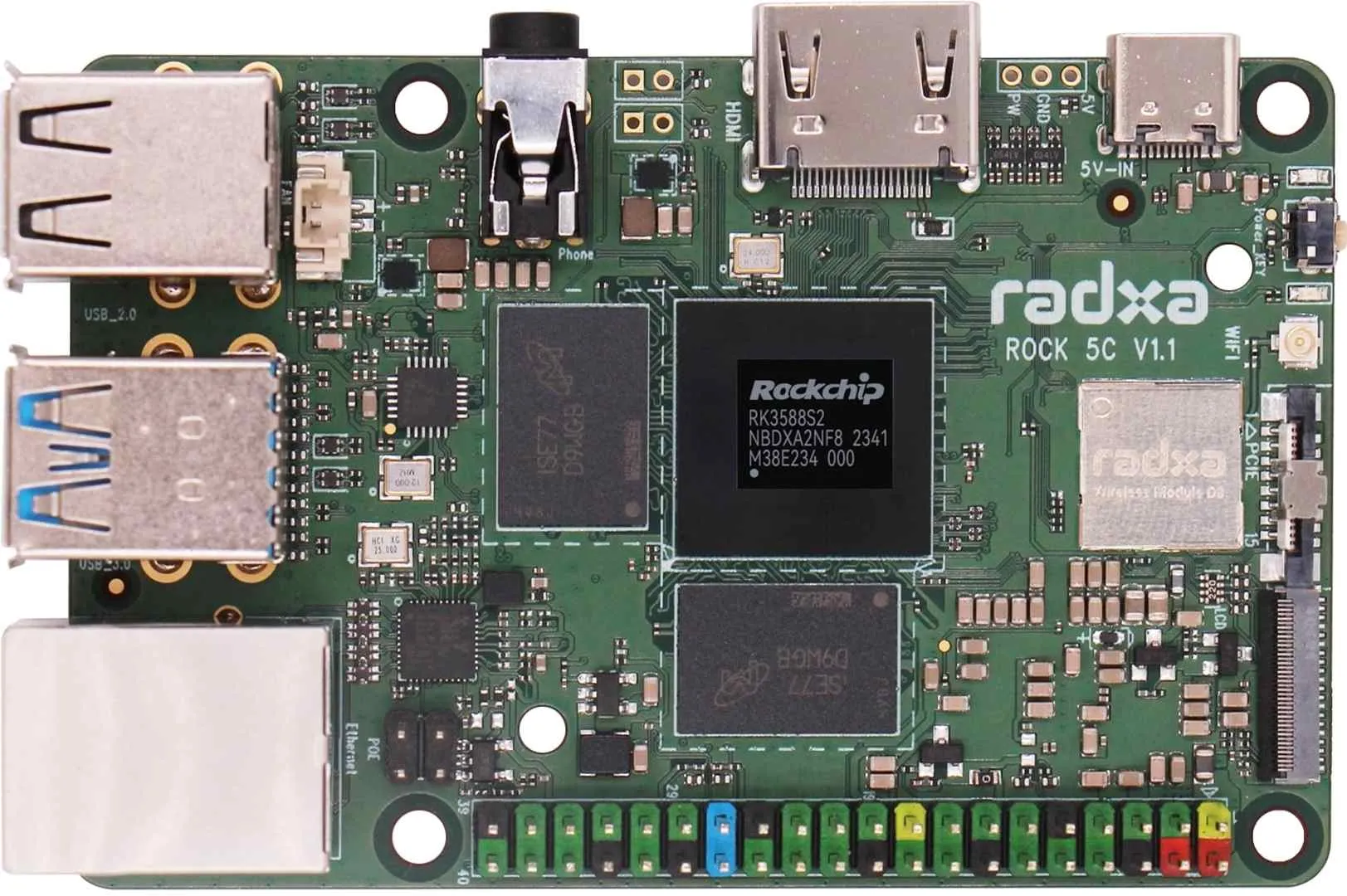

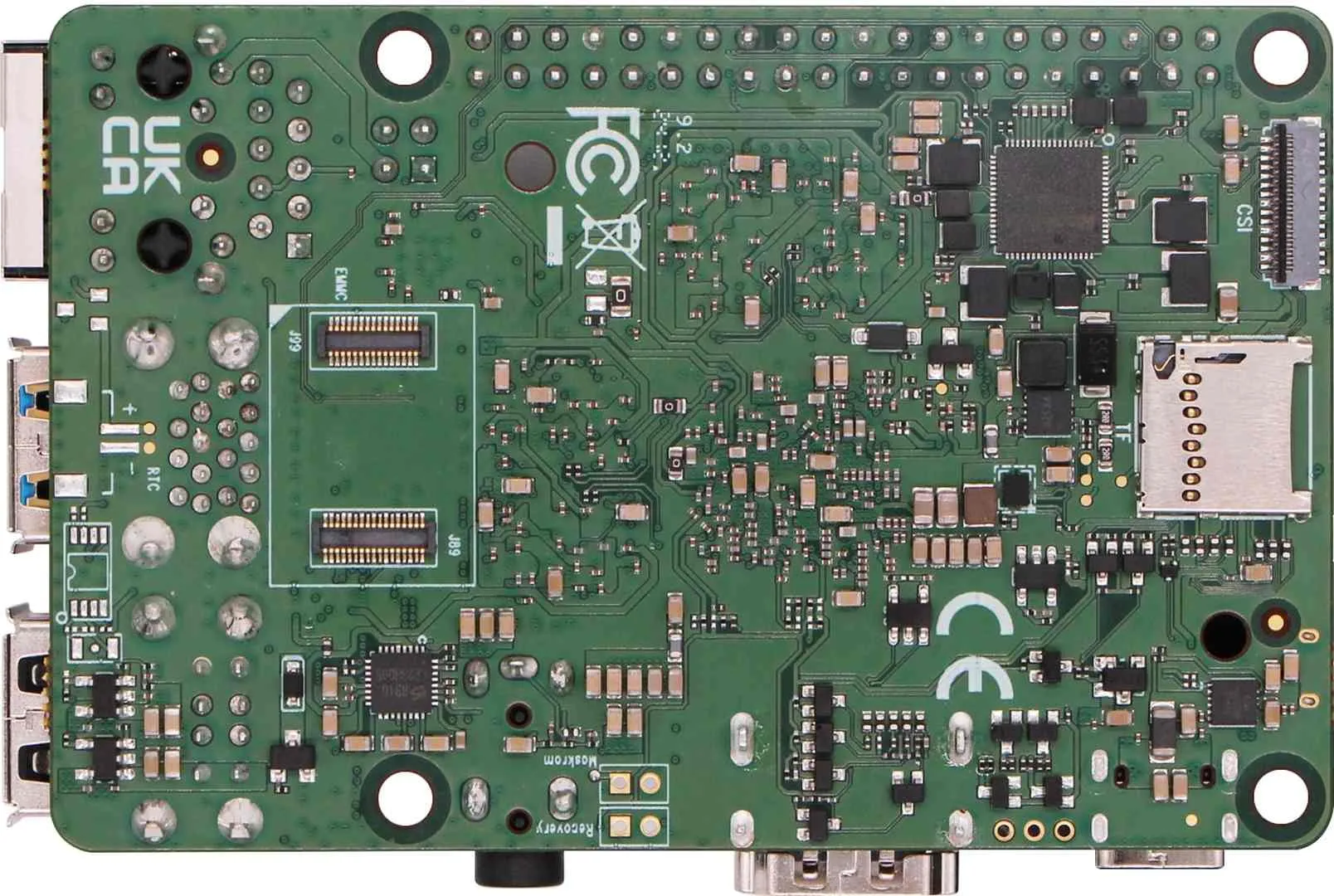

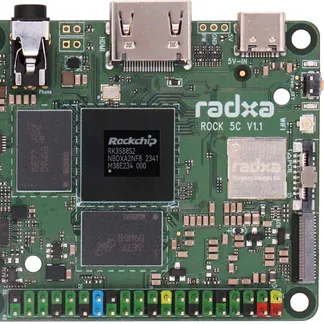

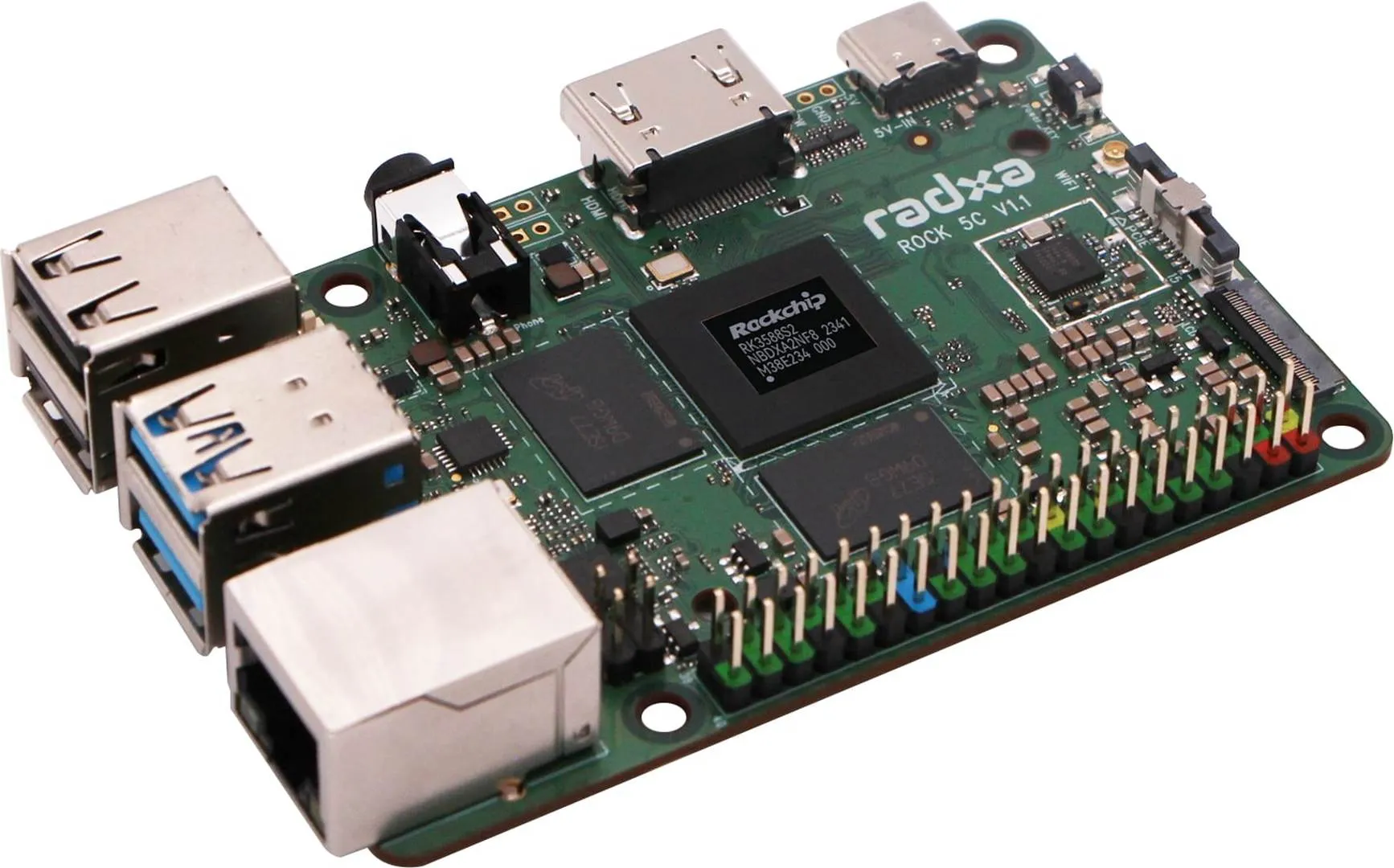

Rockchip RK3588S2 64bit octa core ARM based SBC´s RADXA´s latest generation SBC based on the Rockchip RK3588S2 in a compact form factor packed with a wide range of class-leading functionality, features and expansion options. Various LPDDR4x RAM memory options (2, 4, 8, 16 and 32GB). Rock5 Model C product details RK3588S2 64bit octa core processor Quad Cortex®-A76 @ 2.2~2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm® DynamIQ™ confguration GPU Arm Mali™ G610MC4 GPU supporting: – H.265 and VP9 decoder by 8K@60fps – H.264 decoder by 8K@30fps – AV1 decoder by 4K@60fps – H.264 and H.265 encoder by 8K@30fps NPU NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 6TOPs Memory LPDDR4 64bits LPDDR4x RAM with 2, 4, 8, 16 or 32GB Storage · 1x eMMC Connector · 1x Micro SD Card Slot · no SPI Flash Display HDMI and MIPI DSI Dual display support via HDMI, and MIPI DSI H.265/VP9 decoder up to 8K@60fps H.264 multivideo decoder up to 8K@30fps Interfaces · 1x USB Type-C™ port for 5V fixed power · 1x Micro SD Card · 1x HDMI 2.1 port (up to 8K) · 1x MIPI DSI (up to 2K) · 2x USB2.0 Type A HOST ports, 1x USB3 Type A HOST port, 1x USB3.0 Type A OTG/HOST port · 1x Gigabit Ethernet port (supports PoE with add-on PoE HAT) · 1x M.2 E Key with PCIe 2.1 one-lane, SATA, USB 2.0 support · 1x eMMC module connector for eMMC 5.1 support · 1x Camera port (1x four-lane MIPI CSI or 2x two-lane MIPI CSI) · 1x PCIe FPC connector with PCIe 2.1 1-lane · Miscellaneous – 1x 2 pin fan connector – 1x Power button – 1x Power LED, 1x User LED ·40 pin 0.1” (2.54mm) header supporting a wide range of interface options: – Up to 5 x UART (2x with ?ow control) – Up to 3 x SPI bus – Up to 6 x I2C bus – Up to 1 x PCM/I2S – Up to 2 x SPDIF – Up to 7 x PWM – Up to 1 x CAN – Up to 1 x ADC – Up to 27 x GPIO – 2 x 5V DC power in/out – 2 x 3.3V power out Network LAN 1GbE LAN with PoE support *additional HAT is required for powering via PoE WiFi WiFi 6 and BT 5.4 with External Antenna Connector Software · ArmV8 Instruction Set · Debian/Ubuntu Linux support · Android 12 support · Hardware access/control library for Linux/Android Others Power adapter with fixed voltage of 5V on the USB Type-C port requested ROCK 5C has been designed to operate between 0°C to 50°C Size 86mm x 56mm Essentials You Need ROCK5 Model C Fixed voltage (5V) power adapter with USB- C port equal or larger than 10W (>=25W with PCIe 2.1 load and USB3 use) Keyboard & Mouse Monitor with HDMI input
