Beschreibung

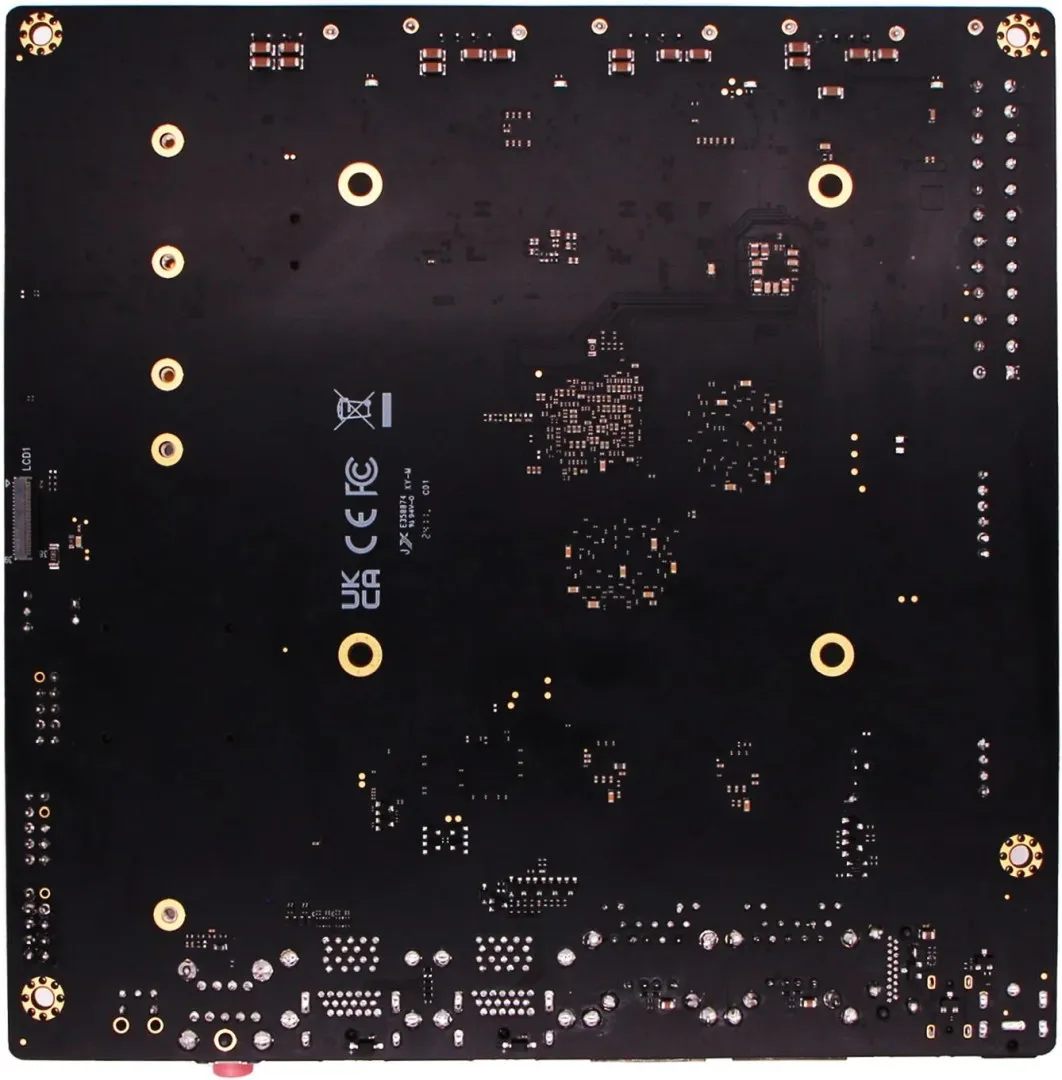

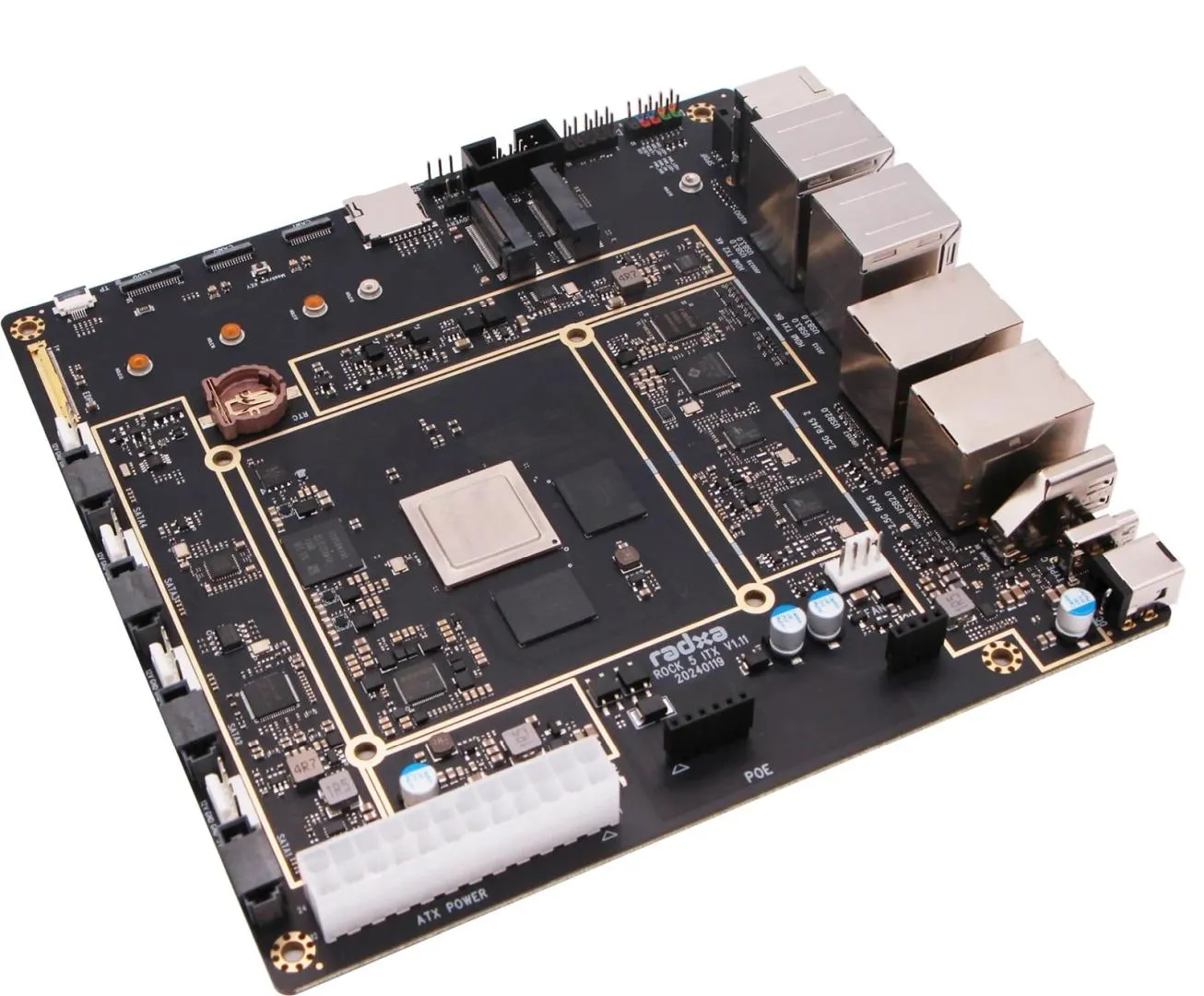

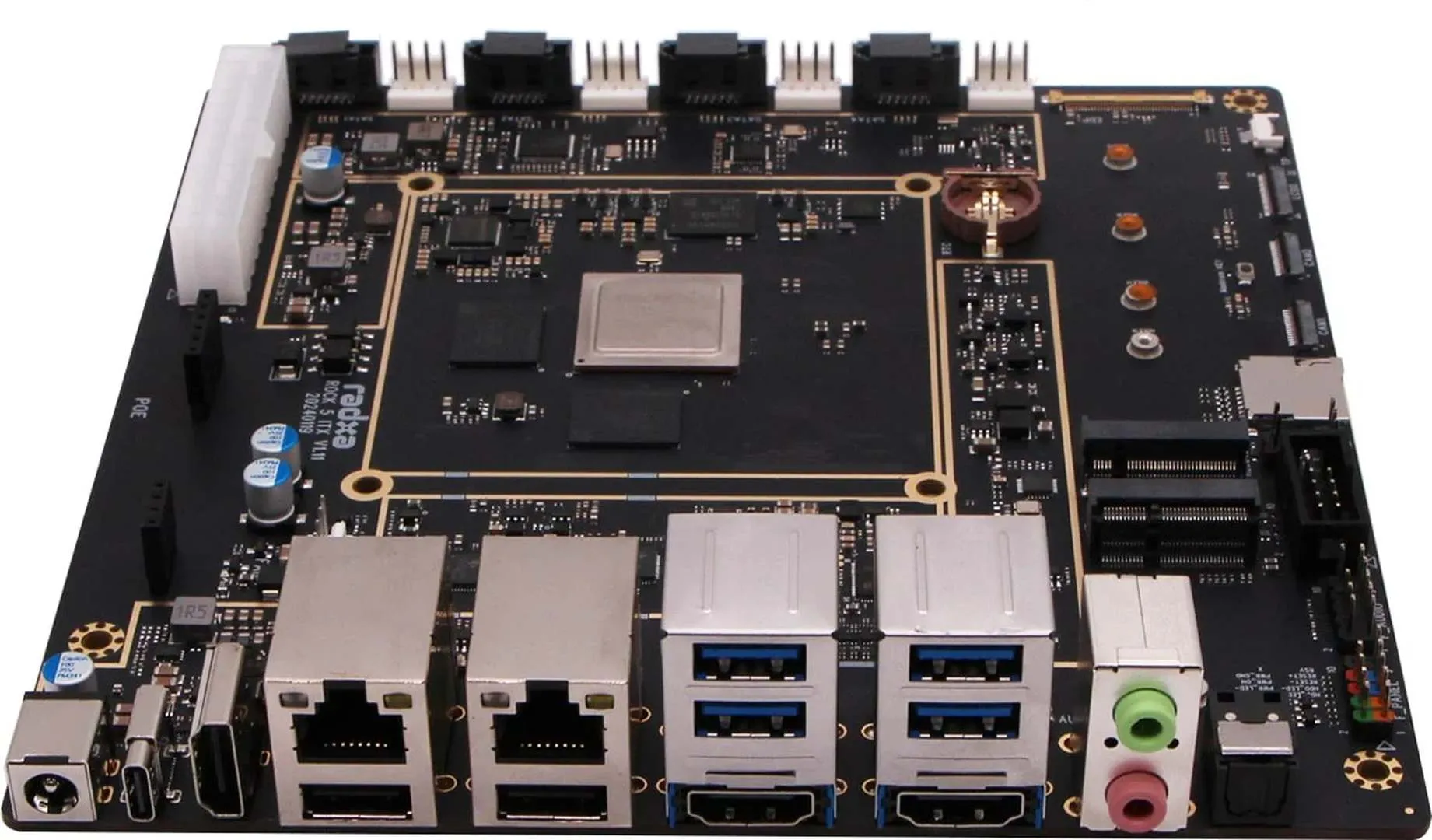

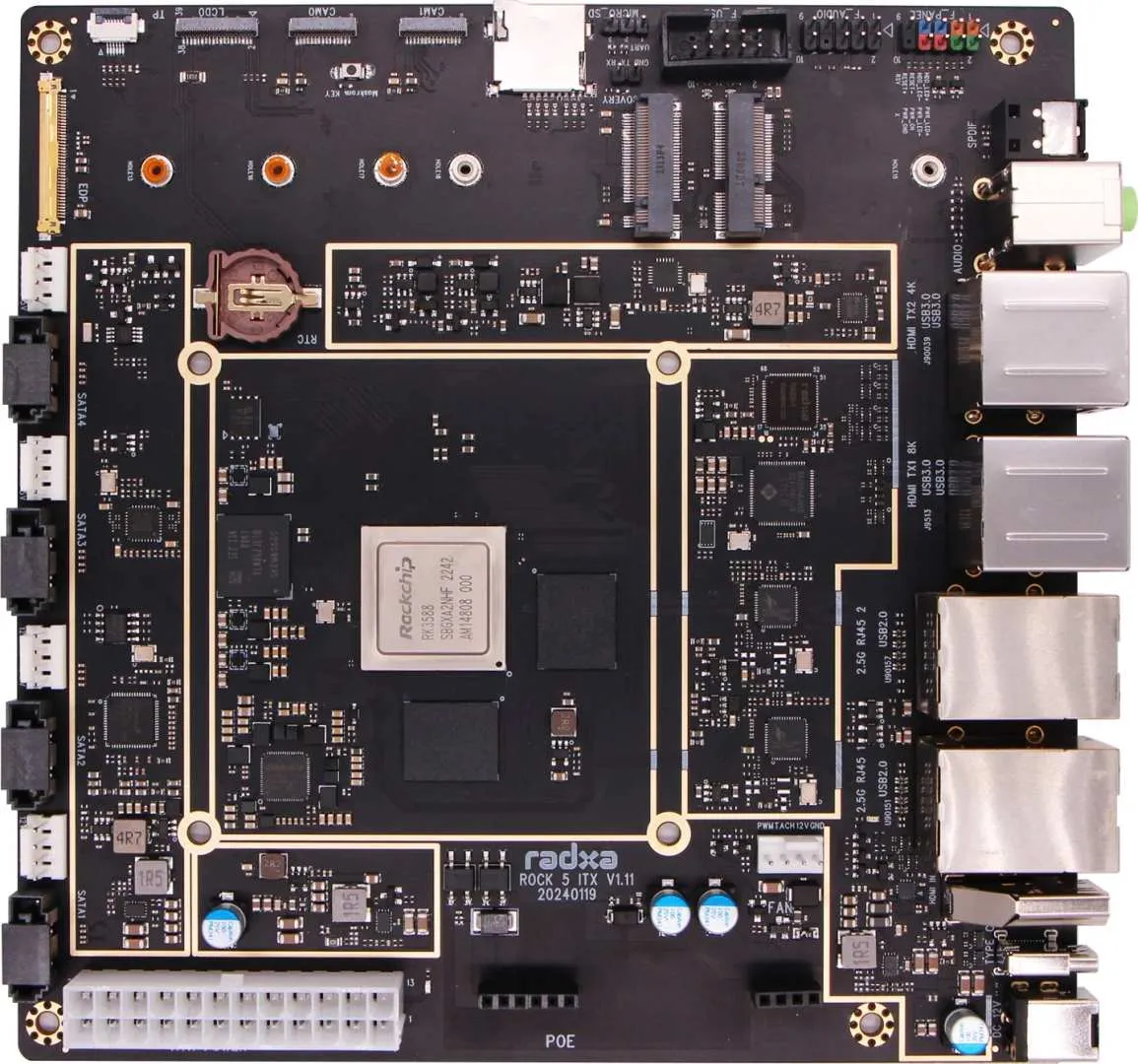

Rockchip RK3588 64bit octa core ARM based ITX Motherboard RADXAs neuestes innovatives Motherboard basierend auf dem Rockchip RK3588 im gerade eingeführten ITX-Formfaktor. Führende SOC-Technologie (8nm-Fertigungsprozess) in Kombination mit einem umfangreichen Funktionsumfang hält nun Einzug in das ITX-Motherboard-Segment. Rock 5 ITX product details* RK3588 64bit octa core processor Quad Core A76 2.2~2.4GHz + Quad Core A55 1.8GHz GPU Mali G610MP4 GPU (up to 5 channel 4k UI) 8K 10bit decoder, 8K encoder NPU 6TOPs NPU Support of INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration Memory LPDDR5 LPDDR5 with 4, 8, 16 or 32GB SPI Flash 32MB SPI flash soldered Wifi/BT WiFi 6E and BT5.2 support via opt. WiFi module Storage 1x 8GB eMMC onboard for ROOBI OS 1x microSD card slot 1x M.2 connector M key for NVMe with PCIe 3.0 x2 lanes 4x SATA Ports with Power Header Video Output (up to 4 display outputs at a time) 1x HDMI 2.1 up to 8k@60FPS 1x HDMI 2.1 up to 4k@60FPS 1x USB-C with DP up to 4K@60FPS 2x 4-lane MIPI DSI for MIPI LCD 1x eDP with Touch Panel support Video Input 1x HDMI Input up to 4k@60FPS 2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI USB 2x USB 2.0 Type-A HOST Ports 4x USB 3.0 Type-A HOST Ports 1x USB 3.0 OTG / HOST Type-C Port 2x USB 2.0 Interface via Front USB header Network Wireless / Bluetooth 1x M.2 E Key Connector for WiFi 6 LAN 2x 2.5GbE LAN with PoE support (additional module required for powering via PoE) Other: – 1x PWM fan connector – 1x RTC Socket(CR1220 battery) – 1x Front Panel header for Power Button / Reset Button / Status LED Power 1x 12V DC Power Jack(55x25mm) 1x Standard 24-Pin ATX Power Supply Interface 1x PoE Header(Additional PoE Module Required) Size 170mm x 170mm Recommended operating temperature: 0 ~ 50°C Essentials You Need ROCK 5 ITX 12V DC Power supply Keyboard & Mouse Monitor with HDMI input
