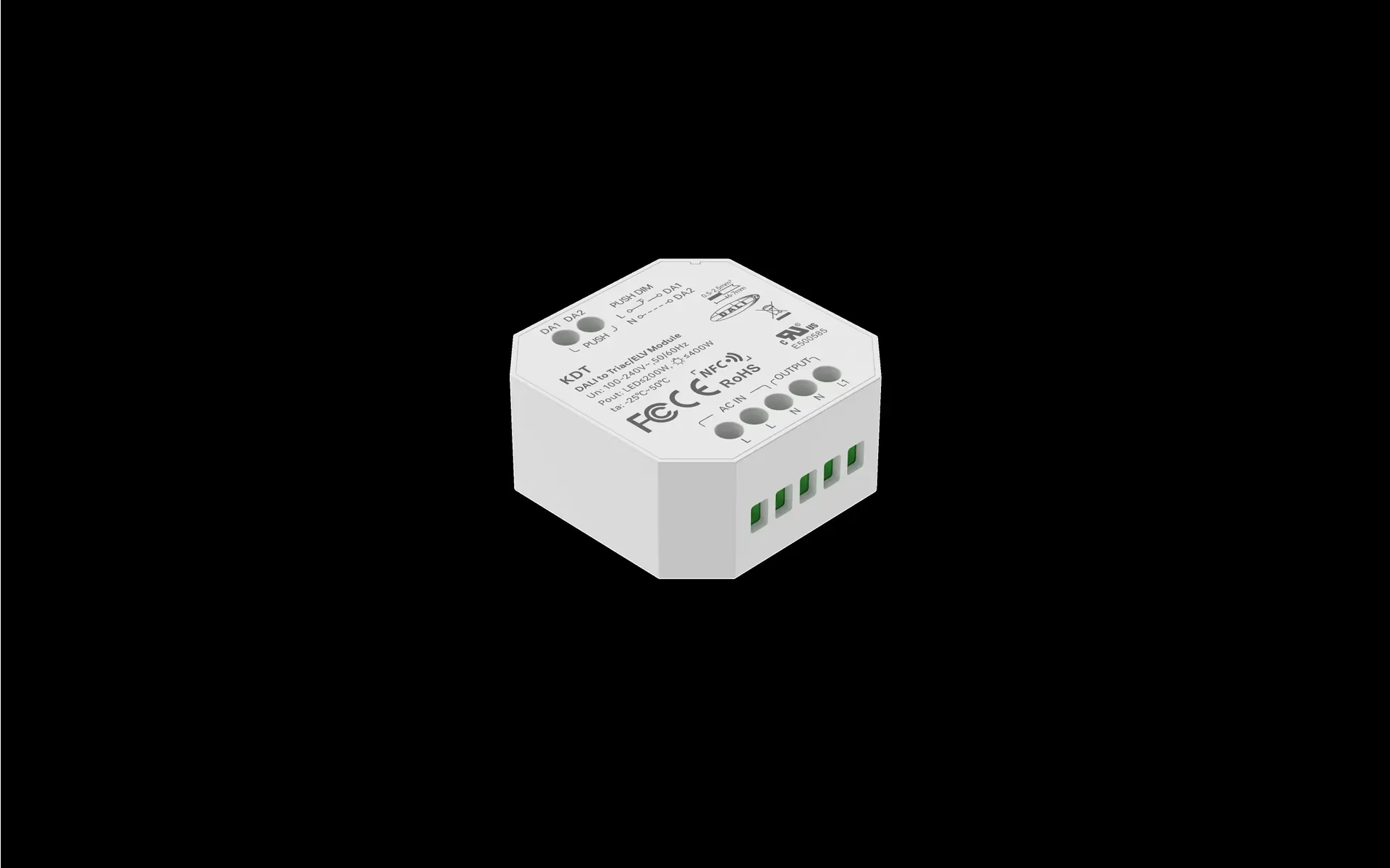

Casambi CBU-TED – triac dimmer

Beschreibung

CBU-TED

smart-BCU 01-PC-SY – SYNERGY21 softbrand – Phasenabschnittsdimmer bis max. 150W -siehe Datenblatt- baugleich CASAMBI CBU-TED / RADIUM Bluetooth Control Unit BCU 150/TED (LMBA0027) –
Dimming method: Trailing-edge phase control
Input: 85-240 VAC 50-60 HZ, 0,65 A

Output: Incandescent and high voltage halogen bulbs:
150 W @ 230 VAC, 70 W @ 110 VAC

High voltage AC LED modules:
150 W @ 230 VAC
70 W @ 110 VAC

Dimmable LED and CFL bulbs:
50 W @ 230 VAC
25 W @ 110 VAC

Dimmable electronic transformers:
50 W @ 230 VAC
25 W @ 110 VAC
Max. output current: 0,65 A

Min. load requirement: 1W
Max. current pulse: 4 A
Dimensions: 40,4 x 36,3 x 14,0 mm
Protection: IP20
