Beschreibung

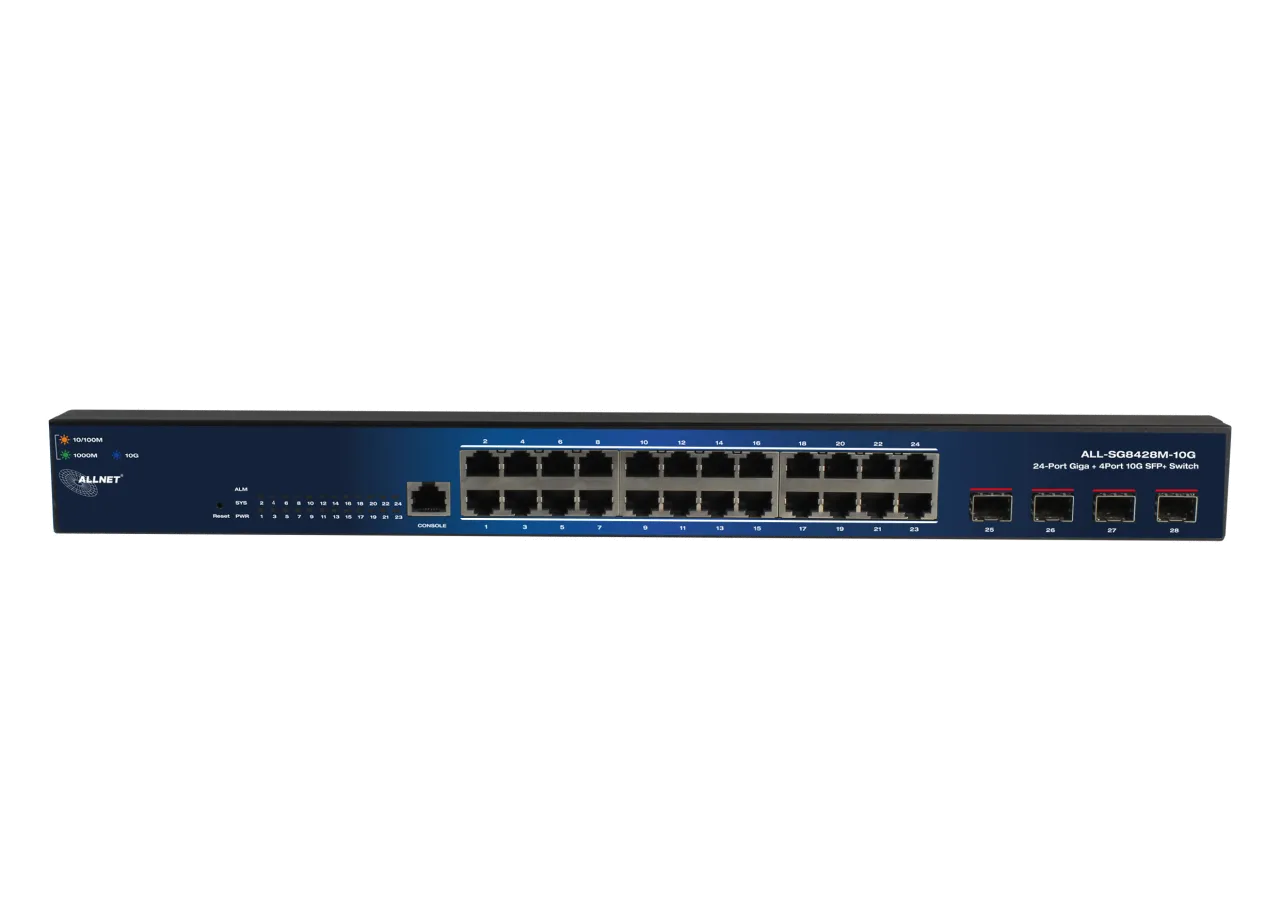

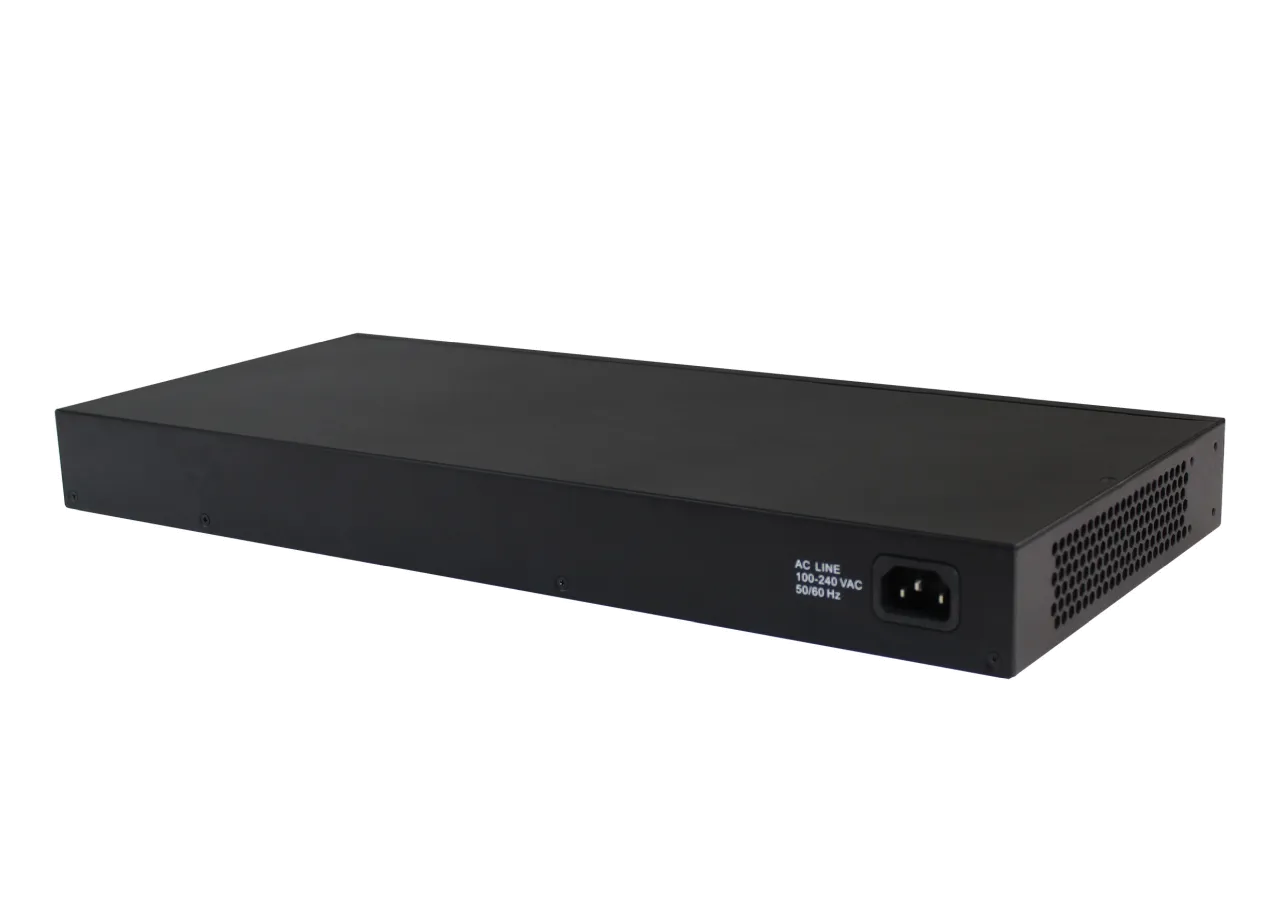

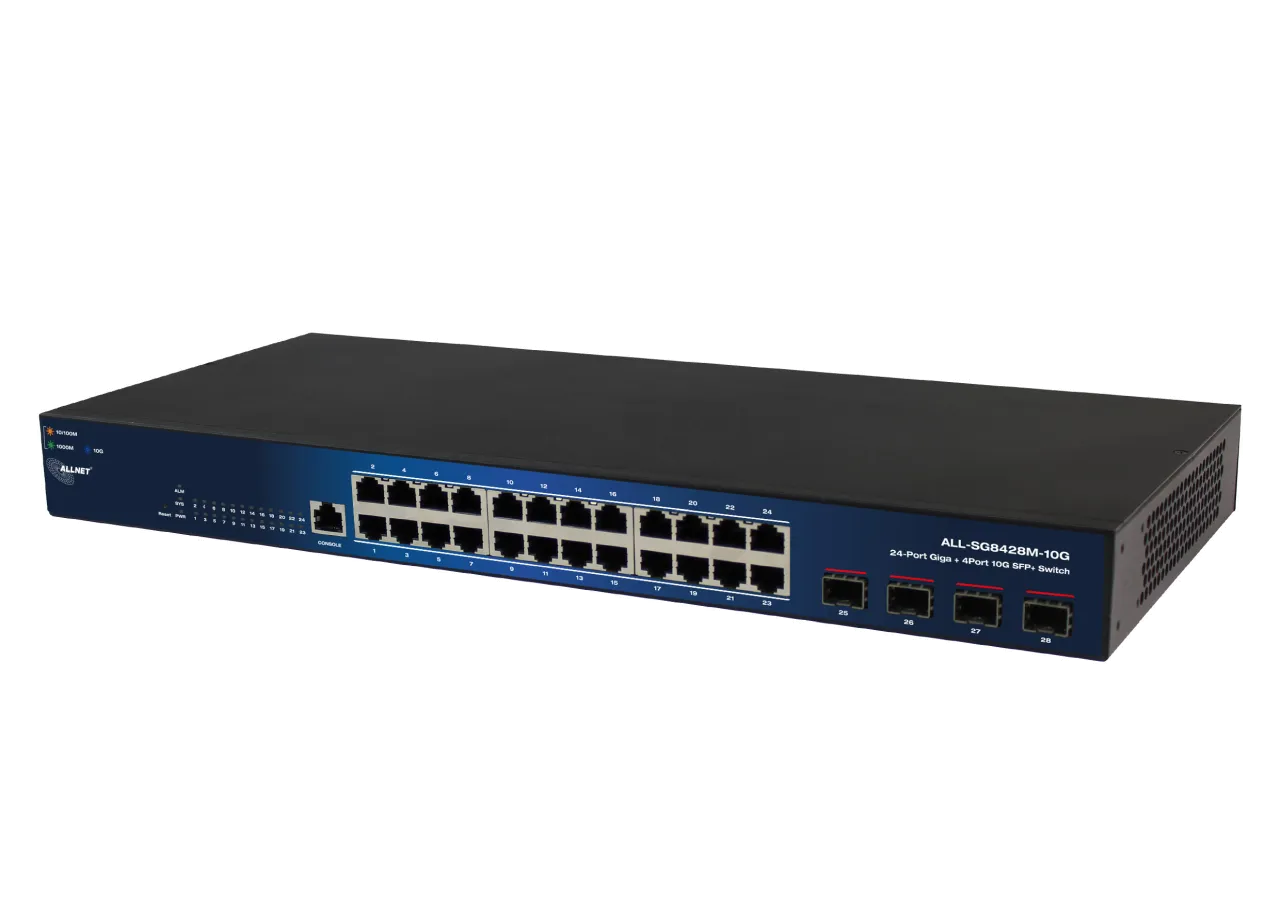

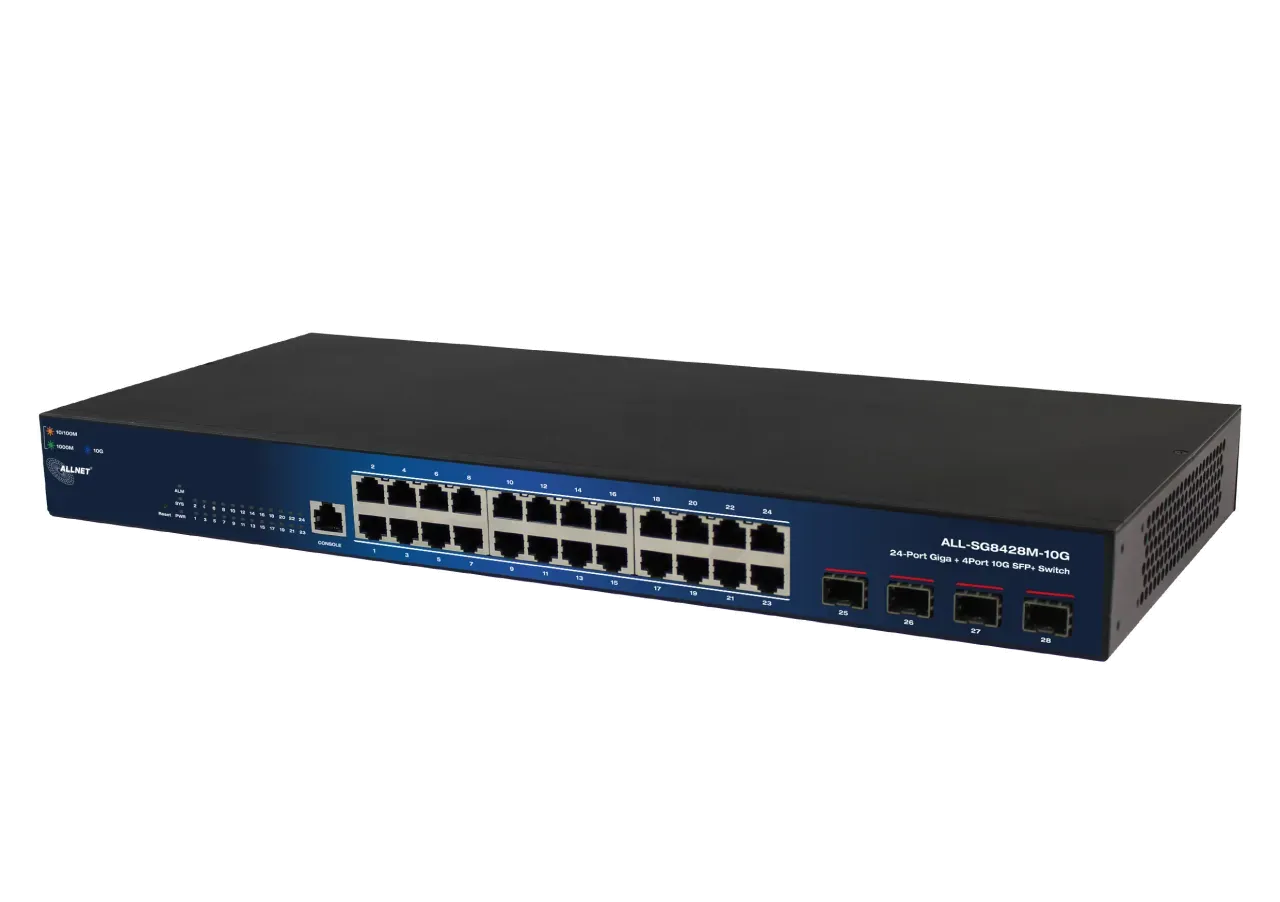

ALLNET ALL-SG8428M-10G – Smart Managed Switch für maximale Performance Highlights: 24x 10/100/1000 Mbps RJ45-Ports 4x 1G/10G SFP+ Slots für High-Speed-Uplinks Layer-2 Management-Funktionen für effiziente Netzwerkkontrolle Energieeffizientes, lüfterloses Design Desktop- und Rackmount-fähig (inkl. Montagezubehör) Robustes Metallgehäuse für langlebigen Einsatz Produktbeschreibung Erleben Sie höchste Netzwerkperformance mit dem ALLNET ALL-SG8428M-10G! Dieser kosteneffiziente 24-Port Gigabit Layer-2 Switch mit 4 zusätzlichen SFP+ Slots bietet eine leistungsstarke, lüfterlose Lösung für anspruchsvolle Business- und Industrieumgebungen. Ideal geeignet für den Einsatz auf dem Desktop oder zur nahtlosen Integration in 19″-Rack-Systeme. Ihre Vorteile auf einen Blick Maximale Flexibilität: 24 Gigabit-Ports + 4 SFP+ MiniGBIC Slots für Glasfaseranbindungen. Lüfterloses Design: Flüsterleiser Betrieb – perfekt für geräuschempfindliche Arbeitsumgebungen. Non-blocking Architektur: Für verzögerungsfreie Datenübertragung und höchste Netzwerkgeschwindigkeit. Einfache Installation: Unterstützung des NWay-Protokolls zur automatischen Anpassung von Geschwindigkeit und Duplex-Modus. Rackmount-fähig: Ideal für professionelle Server- und Technikräume. Anwendungsbereiche Unternehmen mit hohen Anforderungen an Bandbreite und Zuverlässigkeit Geräuscharme Büroumgebungen Professionelle Rechenzentren und Netzwerkinfrastrukturen Industrieanwendungen dank robuster Bauweise Technical Details: Hardware Specs Model No. ALL-SG8428M-10G Key Components RTL9301M + RTL8218D x3 Flash IC: MXIC 16M Byte DDR: 1G bits I/O Ports 24x GbE ports, RJ45 4x 10G ports, SFP+ Reset Button: reset to default setting, restart system Console port: RJ45 type LED Define PWR: Green LED Off: power off/fail, On: power on SYS: Green LED Off: power off/fail, On: system ready, Blinking: booting up Alert: Red LED Off: normal, On: system failure (overheat, wrong voltage) Port 1-24 LED: Link/ACT – Off: disconnected – Green: 1000Mbps connected – Amber: 10/100Mbps connected – Blinking: transmitting Port 25-28 LED (SFP+): – Off: disconnected – Blue: 10Gbps connected – Green: 1Gbps connected – Blinking: transmitting HW Feature IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3ae SFP+ IEEE802.3az EEE MAC address table: 16K Packet buffer size: 12Mbit Jumbo Frame: 12K bytes Switching capacity: 128Gbps Forwarding rate: 95.2Mpps (64-byte package) Data Transfer Rate Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Giga Ethernet: 2000 Mbps (full duplex) 10 Gigabit Ethernet: 20 Gbps (full duplex) System Monitor HW Monitor IC: ADT7463 Voltage Monitor: Input: 12V (±7% Alarm) I/O: 3.3V (±5%) DDR: 1.5V (±5%) PHY: 1.1V (±5%) MAC: 1.0V (±5%) Temperature Monitor: Board: 0–80°C MAC: 0–85°C PHY: 0–85°C Power Input Internal power supply Input: 90–264VAC / 47–63Hz Output: 12V/3A Reset Button Supports reset to default configuration Dimension 441(W) x 196(D) x 44(H) mm Fan Design Fan-less Temperature Operating: 0 ~ 40°C Storage: -40 ~ 70°C Humidity Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing) Software Spec Status System Information Logging Message Port Statistics Error Disabled Bandwidth Utilization Link Aggregation MAC Address Table 8K Network IP Address Static / Dynamic System Time SNTP / From Computer / Manual Time Port Port Setting State / Speed / Duplex / Flow Control Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood Link Aggregation Group Port Setting State / Speed / Flow Control LACP EEE Jumbo Frame 1518 – 10000 Byte PoE Global Setting Schedule Status Priority Setting Power Limit Power Show VLAN VLAN Create VLAN VLAN Configuration Membership Port Setting Voice VLAN Property Voice OUI Protocol VLAN Protocol Group Group Binding MAC VLAN MAC Group Group Binding Surveillance VLAN Property Surveillance OUI GVRP Property Membership Statistics MAC Address Table Dynamic Address Aging Time Static Address Filtering Address Spanning Tree Property State / Operation Mode / Path Cost / BPDU Handling Operation Mode : STP/RSTP/MSTP Port Setting MST Instance MST Port Setting Statistics Discovery LLDP Property Port Setting MED Network Policy MED Port Setting Packet View Local Information Neighbor Statistics Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table Throttling Filtering Profile Filtering Binding IGMP Snooping Property State / Version / Report Suppression Querier Statistics MLD Snooping Property State / Version / Report Suppression Statistics MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting Group Address Security RADIUS TACACS+ AAA Method List Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access Management VLAN Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL Management ACE Authentication Manager Property Port Setting Sessions Port Security Protected Port Storm Control State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP Inspection Property Statistics DHCP Snooping Property Statistics Option82 Property Option82 Circuit ID IP Source Guard Port Setting IMPV Binding Save Database ACL MAC ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL Binding QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute Copper Test Fiber Module UDLD Property Message Time Neighbor Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group Community User Engine ID Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics History Event Alarm
