Beschreibung

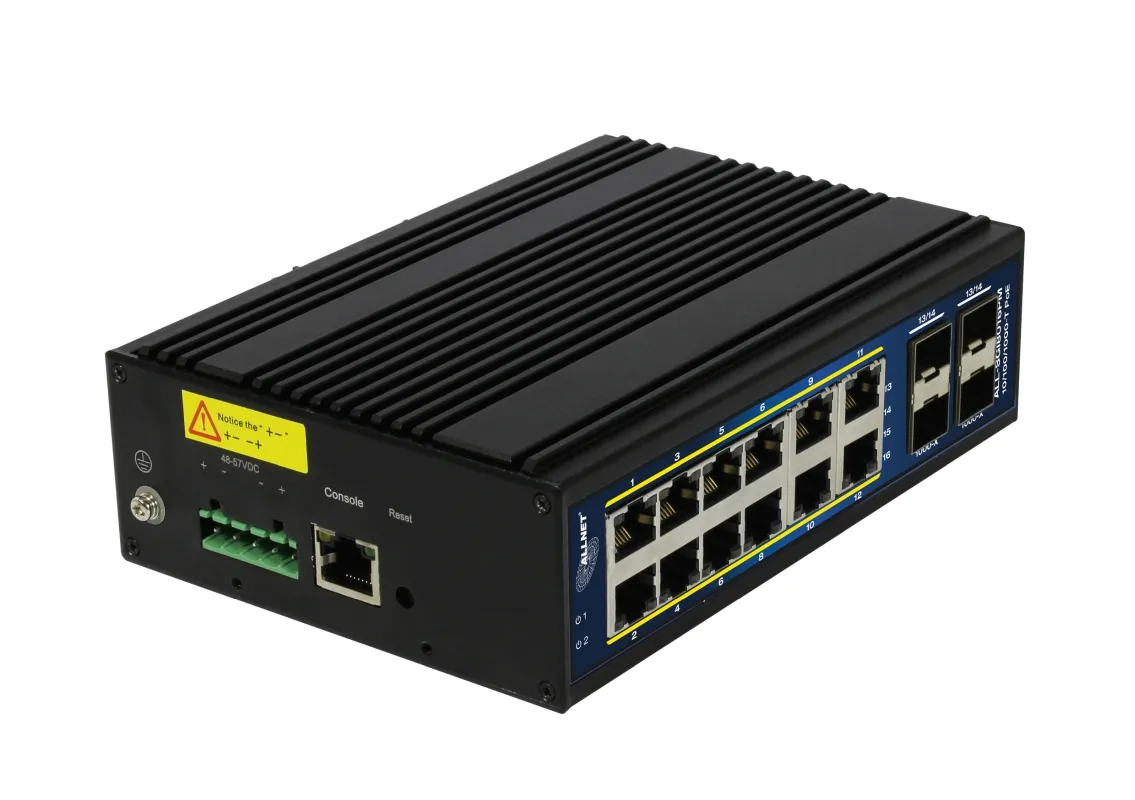

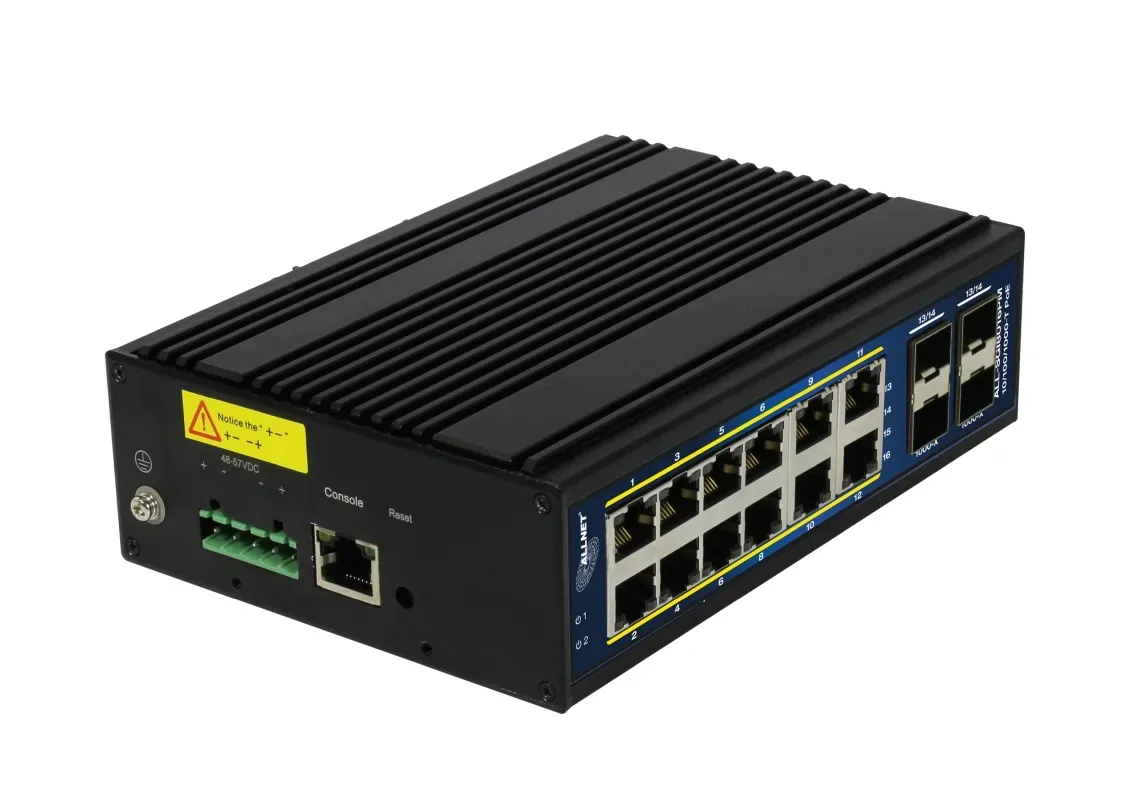

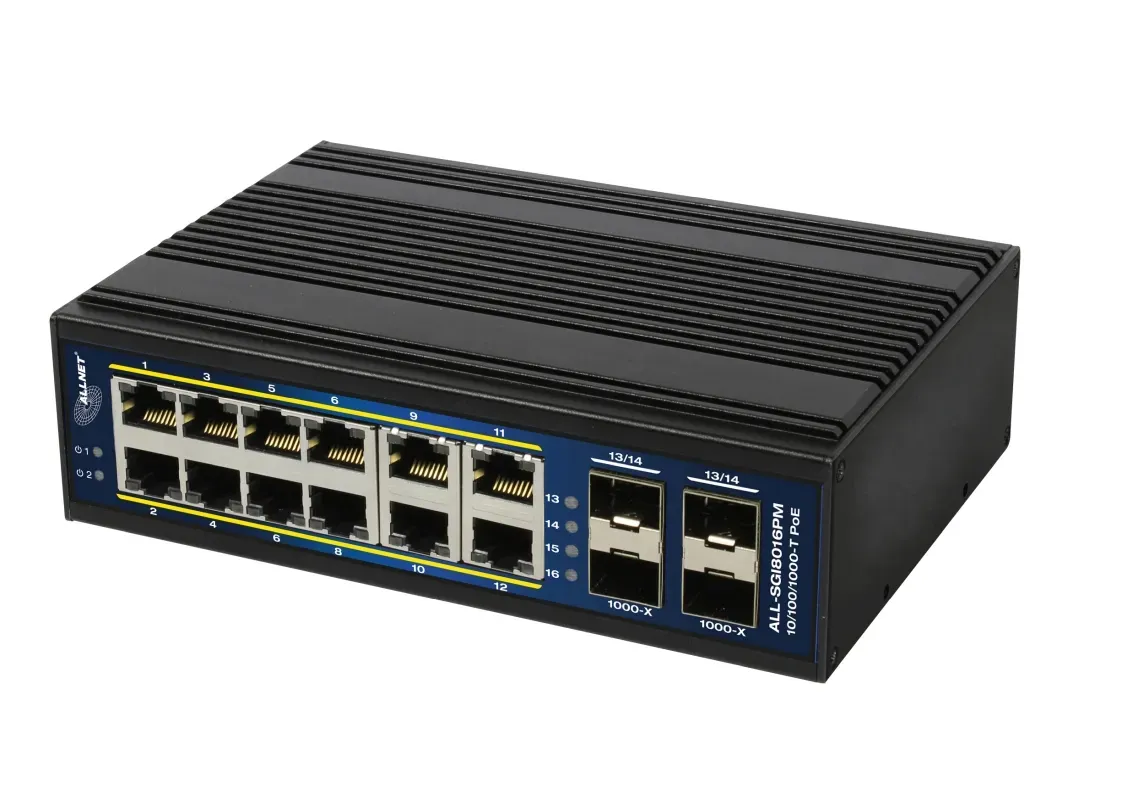

Highlights: 12×10/100/1000M PoE-Downlink-Ports, 4x1000M SFP-Ports Unterstützt PoE-Leistung von bis zu 30W/Port Unterstützt L3-Management, wie OSPF, RIP, QoS, VLAN, MSTP, Multi-Broadcast, Ports-Management und PoE-Management 6KV Überspannungsschutz, 8KV Kontakt /15KV Luft ESD-Schutz Erweiterter Temperaturbereich -40°C ~+75°C Der ALLNET ALL-SGI8016PM ist ein professioneller und dennoch erschwinglicher industrieller L3 PoE-Switch mit 16 Gigabit-Ports, der bis zu 12*10/100/1000M PoE-Downlink-Ports und 4* 1000M SFP-Ports unterstützt. Die 12*10/100/1000M Ports unterstützen PoE+ und entsprechen dem IEEE 802.3af/at Standard, die PoE-Leistung pro Port beträgt bis zu 30W. Er unterstützt ein L3-Management wie OSPF, RIP, QoS, VLAN, MSTP, Multi-Broadcast, Port-Management und PoE-Management und verfügt über 6KV Überspannungsschutz, 8KV Kontakt/ 15KV Luft ESD-Schutz. Die Wand-, Tisch- und Hutschieneninstallation ist zuverlässig und langlebig und kann in Sicherheitsnetzwerken, bei der Videoüberwachung, in der Netzwerktechnik und bei anderen Gelegenheiten eingesetzt werden. Technical Details: Parameter Specifications CPU Chipset BCM53344 PoE PSE Chipset IC+ 808 Power supply Powered by power adaptor Range of voltage 2*DC 48~57V, redundancy power supply Consumption Self consumption<20W Downlink ports 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at) Uplink ports Ports 13~16 1000M SFP slots Cable and distance Use cat5e/6,100m max Standard IEEE802.3, IEEE802.3u, IEEE802.3z Switch fabric 32Gbps Though put 23.8Mpps Buffer 4M MAC address table 16K Indicator Power: 2 *red Uplink 13~16: green LEDs indicate Link/Act Downlink 1~12: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE Protection Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2 Working temperature -40°C~+75°C Storage temperature -40°C~+85°C Humidity 0~95%(No condensation) Dimension(L×W×H) 165 mm×114 mm×46mm Material Metal Colour Black Net-weight 530g L2 Features Port configuration Auto-negotiation Flow Control Port Mirror L2 Features Link Aggregation Traffic statistics Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP 8 groups 8 ports per group L2 Features MAC Table Aging Time Static MAC address Dynamic MAC address management L2 Features VLAN 4K Active VLANs 4K VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Management VLAN Voice VLAN Q-in-Q Private VLAN GARP/GVRP L2 Features ACL 64 ACLs L2, L3 e L4 Time-based ACL L2 Features Spanning tree 802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter L2 Features Multicast 256 groups IGMP v1/v2/v3 Fast Leave Multicast VLAN Static Multicast Multicast Filter IGMP Statistics MLD Snooping L2 Features PoE management Support total power consumption control Support single port PoE ON/OFF Support port output priority L2 Features QOS 4 priority queues CoS port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port Security Features Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type 802.1x Autentication (port-based e MAC-based) TACACS/TACACS+ Autentication RADIUS Autentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port Port Isolation Local User Name Password Authentication (2 levels) Loopback detection Management SNMP v1/v2c/v3 RMON 4 grupos WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload All possible configurations in the CLI must exist in the WEB interface LLDP Other Features DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client BOOTP Client Maintenance Ping and Tracert System log (Local and Remote) Memory and CPU Monitoring L3 Features Static Routing OSPFv2 RIPv1/v2 DHCP Server IPV6 IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 Ping6 Tracert6 Telnet(v6) Http/Https IPv6 TFTP Static Routing Interface IPV6
