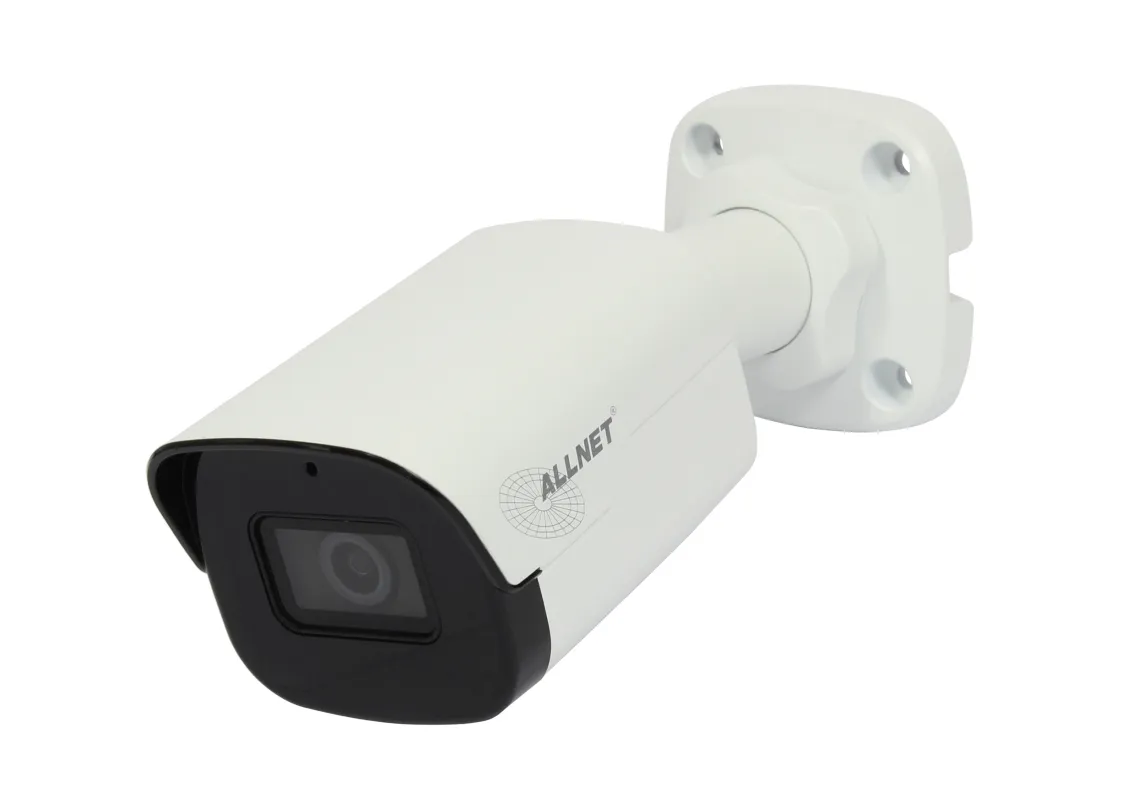

ALLNET IP Kamera Bullet / Outdoor / 5MP / IR / Low-Light / 79° / "ALL-CAM2497v3-LEN"

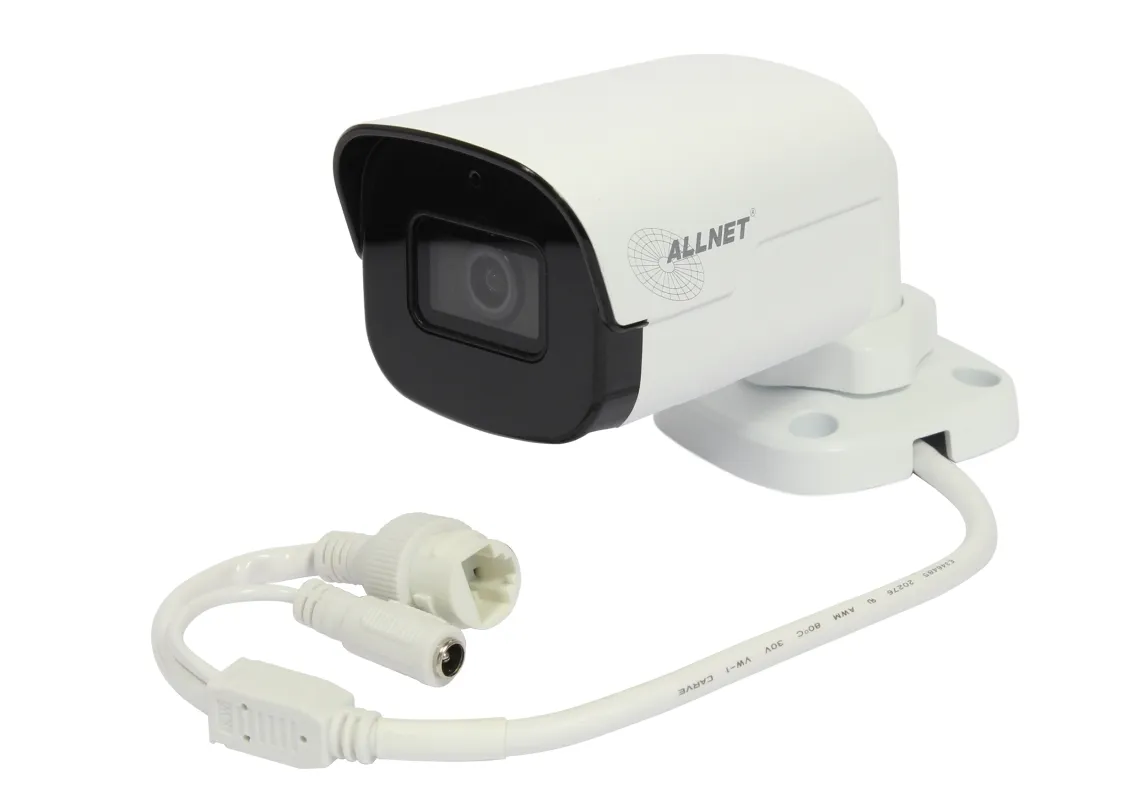

ALLNET IP Kamera Bullet / Outdoor / 5MP / IR / Low-Light / 79° / "ALL-CAM2497v3-LEN" - Image 2

ALLNET IP Kamera Bullet / Outdoor / 5MP / IR / Low-Light / 79° / „ALL-CAM2497v3-LEN“

158,99 €

Enthält 19% MwSt. DE
zzgl. Versand

302 vorrätig

EAN: 4038816135339 Artikelnummer: AN-209784 Kategorie:

Beschreibung

Highlights:

  • Hohe Bildqualität mit 5MP, 1/2.7 „CMOS Sensor
  • 5MP (2880*1620)@ 30/25fps 4MP (2560*1440)@ 30/25fps 3MP (2304*1296) @30/25fps 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung
  • 120dB true WDR Technologie ermöglicht ein klares Bild bei starken Lichtverhältnissen
  • Unterstützt 9:16 Korridormodus
  • Eingebautes Mikrofon
  • Smart IR, bis zu 40m (131ft) IR-Abstand
  • Unterstützt 256 G Micro SD Karte
  • IP67-Schutz
  • Unterstützt PoE-Stromversorgung

Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera—link-fr-den-direkten-stream—all-cam24xx

Technical Details:

  ALL-CAM2497v3-LEN
Camera
Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4.0 90.0 36.0 18.0 9.0
Angle of View (H) 78.7°
Angle of View (V) 44.9°
Angle of View (O) 89.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N &gt56dB
IR Range Up to 40m (131 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream:5MP (2880*1620), Max 30fps 4MP (2560*1440), Max 30fps 3MP (2304*1296), Max 30fps 1080P (1920*1080), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps
Third Stream: D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps
9:16 Corridor Mode Supported
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Dimensions (L × W × H) 155.9 × 63.1 × 62.7mm (6.1” × 2.5” × 2.5”)
Net Weight 0.425kg (0.93lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button Supported
